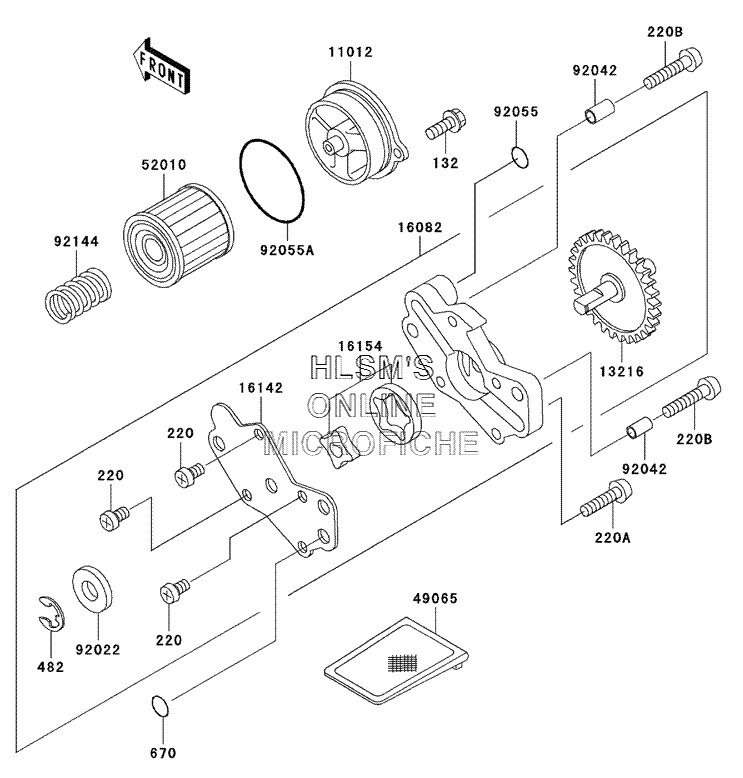

OIL PUMP для Kawasaki Super Sherpa - 2001 года выпуска
-
№АртикулНазвание
-
132132Y0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0610 SCREW, PAN, CROS, 6X10SCREW, PAN, CROS, 6X10
-
220A220B0625 SCREW, PAN, CROS, 6X25SCREW, PAN, CROS, 6X25
-
220B220B0630 SCREW, PAN, CROS, 6X30SCREW, PAN, CROS, 6X30
-
482482J6000 CIRCLIP, TYPE, E, 6MMCIRCLIP, TYPE, E, 6MM
-
670670B2010 O-RING, 10MMO-RING, 10MM
-
1101211012-1995 CAP, OIL FILTERCAP, OIL FILTER
-
1321613216-1162 GEAR, COMPGEAR, COMP
-
1608216082-1151 PUMP, ASSY, OILPUMP, ASSY, OIL
-
1614216142-1123 COVER, PUMPCOVER, PUMP
-
1615416154-1077 ROTOR, PUMPROTOR, PUMP
-
4906549065-1058 FILTER, OILFILTER, OIL
-
5201052010-1053 ELEMENT, OIL FILTERELEMENT, OIL FILTER
-
9202292022-1181 WASHER, 10.2X14.5X1.0WASHER, 10.2X14.5X1.0
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9205592055-074 O-RING, OD=13O-RING, OD=13
-
92055A92055-1577 O-RING, 52.6X2.4O-RING, 52.6X2.4
-
9214492144-1761 SPRINGSPRING
