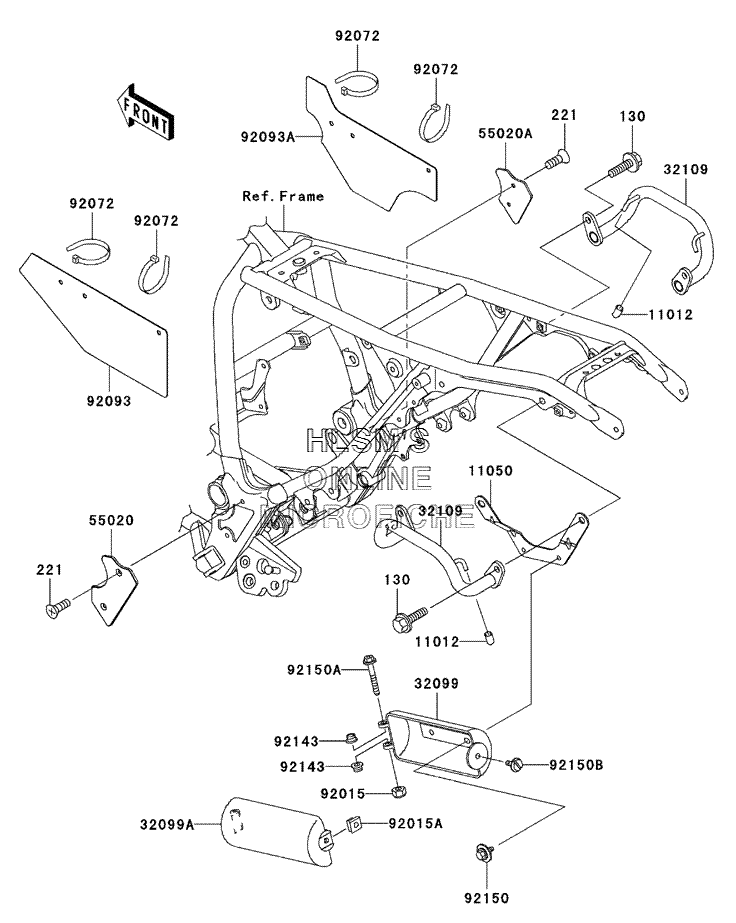

FRAME FITTING(S) для Kawasaki Super Sherpa - 2001 года выпуска
-
№АртикулНазвание
-
130130G0816 BOLT, FLANGED, 8X16BOLT, FLANGED, 8X16
-
221221B0512 SCREW, CSK, CROSS, 5X12SCREW, CSK, CROSS, 5X12
-
1101211012-1589 CAP, BUNGEE CORD HOOKCAP, BUNGEE CORD HOOK
-
1105011050-1445-EZ BRACKET, TOOL CASE (C.GRAY)BRACKET, TOOL CASE (C.GRAY)
-
3209932099-1184 CASE, TOOL, BODYCASE, TOOL, BODY
-
32099A32099-1185 CASE, TOOL, CAPCASE, TOOL, CAP
-
3210932109-1260-EZ GRIP, FRAME (C.GRAY)GRIP, FRAME (C.GRAY)
-
5502055020-1606 GUARD, FOOT (LEFT)GUARD, FOOT (LEFT)
-
55020A55020-1607 GUARD, FOOT (RIGHT)GUARD, FOOT (RIGHT)
-
9201592015-1221 NUT, LOCK, 5MMNUT, LOCK, 5MM
-
92015A92015-1602 NUT, 6MMNUT, 6MM
-
9207292072-1195 BAND, L=202BAND, L=202
-
9209392093-1450 SEAL, AIR CLEANER (LEFT)SEAL, AIR CLEANER (LEFT)
-
92093A92093-1451 SEAL, AIR CLEANER (RIGHT)SEAL, AIR CLEANER (RIGHT)
-
9214392143-1234 COLLARCOLLAR
-
9215092150-1392 BOLT, 6X14BOLT, 6X14
-
92150A92150-1590 BOLT, ADJUST, 5X45BOLT, ADJUST, 5X45
-
92150B92150-3732 BOLT, 6X14BOLT, 6X14
