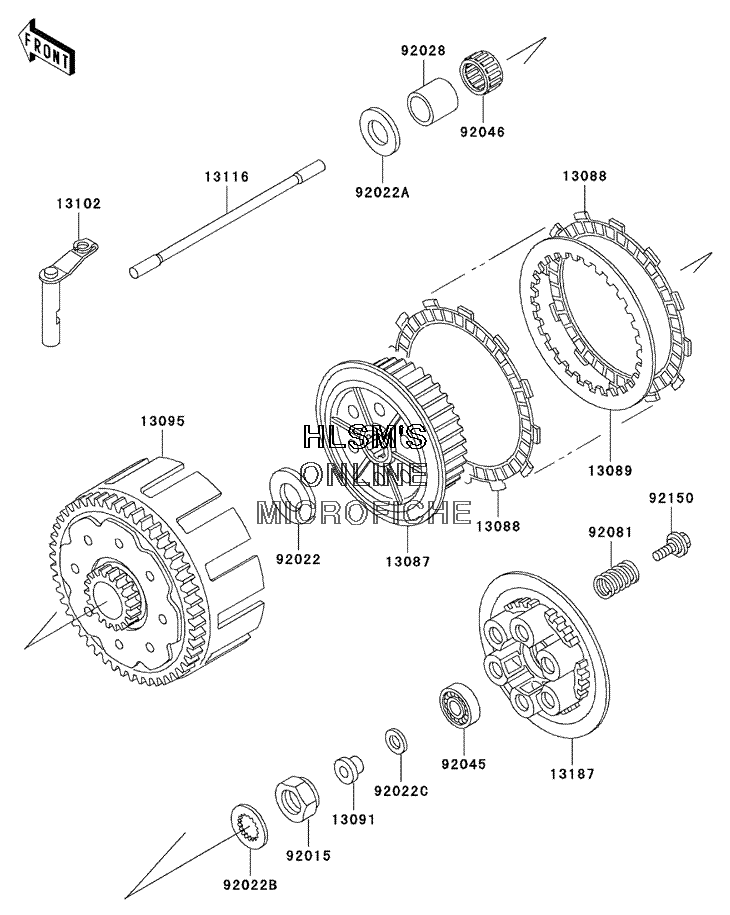

CLUTCH для Kawasaki KX 500 - 2002 года выпуска
-
№АртикулНазвание
-
1308713087-1138 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1114 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1079 PLATE, CLUTCHPLATE, CLUTCH
-
1309113091-1582 HOLDER, RODHOLDER, ROD
-
1309513095-1196 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-1107 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1311613116-1124 ROD, PUSH, L=205ROD, PUSH, L=205
-
1318713187-1060 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
9201592015-1725 NUT, 20MMNUT, 20MM
-
9202292022-1739 WASHER, 22.5X46X2.6WASHER, 22.5X46X2.6
-
92022A92022-1832 WASHER, 22.3X38X3.0WASHER, 22.3X38X3.0
-
92022B92022-1942 WASHERWASHER
-
92022C92022-269 WASHER, 12.3X20X0.5WASHER, 12.3X20X0.5
-
9202892028-1551 BUSHINGBUSHING
-
9204592045-1235 BEARING, BALL, 6001C3ML01BEARING, BALL, 6001C3ML01
-
9204692046-1193 BEARING, NEEDLEBEARING, NEEDLE
-
9208192081-1033 SPRING, CLUTCHSPRING, CLUTCH
-
9215092150-1489 BOLT, 6X22BOLT, 6X22
