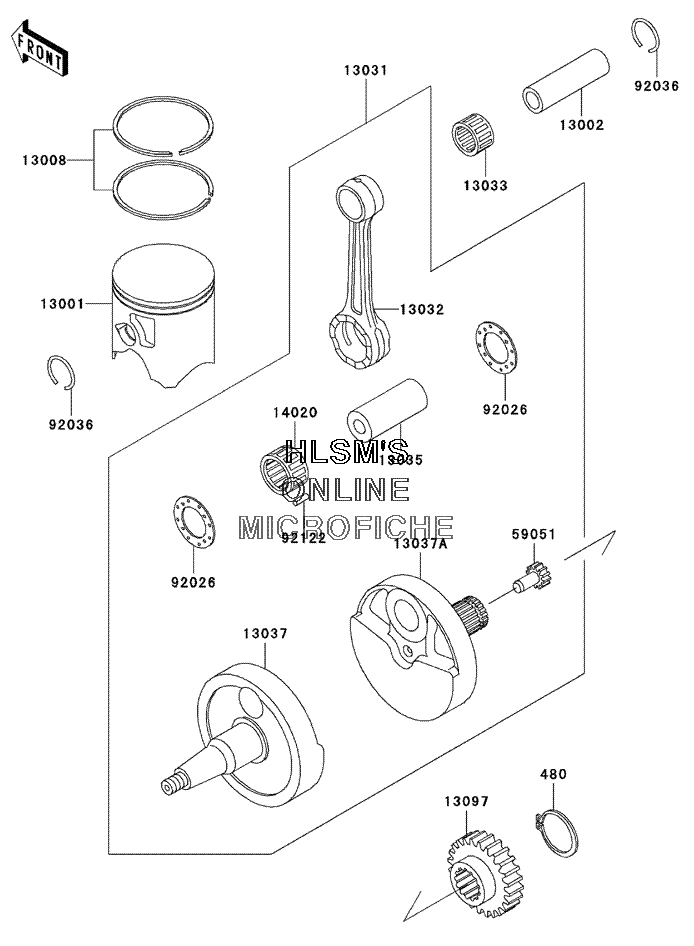

CRANKSHAFT - PISTON(S) для Kawasaki KX 500 - 2002 года выпуска
-
№АртикулНазвание
-
480480J2400 CIRCLIP, TYPE, C, 24MMCIRCLIP, TYPE, C, 24MM
-
1300113001-1327 PISTON, ENGINE (B)PISTON, ENGINE (B)
-
1300213002-1067 PIN, PISTONPIN, PISTON
-
1300813008-1103 RING, SET, PISTONRING, SET, PISTON
-
1303113031-1340 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-1184 ROD, CONNECTINGROD, CONNECTING
-
1303313033-1055 BEARING, SMALL END, KTV192425BEARING, SMALL END, KTV192425
-
1303513035-1008 PIN, CRANKPIN, CRANK
-
1303713037-1358 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037A13037-1359 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1309713097-1205 GEAR, PRIMARY SPUR (26 TEETH)GEAR, PRIMARY SPUR (26 TEETH)
-
1402014020-1071 RETAINERRETAINER
-
5905159051-1128 GEAR, SPUR, WATER PUMP (13 TEETH)GEAR, SPUR, WATER PUMP (13 TEETH)
-
9202692026-1346 SPACER, 26X44X1.0SPACER, 26X44X1.0
-
9203692036-008 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
-
9212292122-1113 ROLLERROLLER
