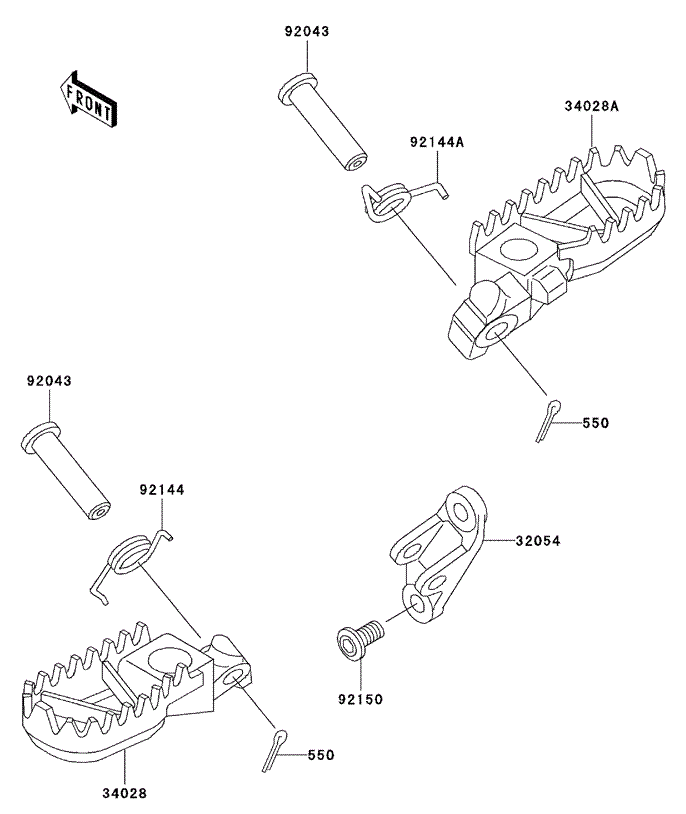

FOOTRESTS для Kawasaki KX 500 - 2002 года выпуска
-
№АртикулНазвание
-
550550S3020 PIN, COTTER, 3.0X20PIN, COTTER, 3.0X20
-
3205432054-1168 BRACKET, STEPBRACKET, STEP
-
3402834028-1332-CE STEP (LEFT) (SILVER NO.25)STEP (LEFT) (SILVER NO.25)
-
34028A34028-1365-CE STEP (RIGHT) (SILVER NO.25)STEP (RIGHT) (SILVER NO.25)
-
9204392043-1372 PIN, 10X45.5PIN, 10X45.5
-
9214492144-1828 SPRING, STEP (LEFT)SPRING, STEP (LEFT)
-
92144A92144-1829 SPRING, STEP (RIGHT)SPRING, STEP (RIGHT)
-
9215092150-1255 BOLT, SOCKET, 10X20BOLT, SOCKET, 10X20
