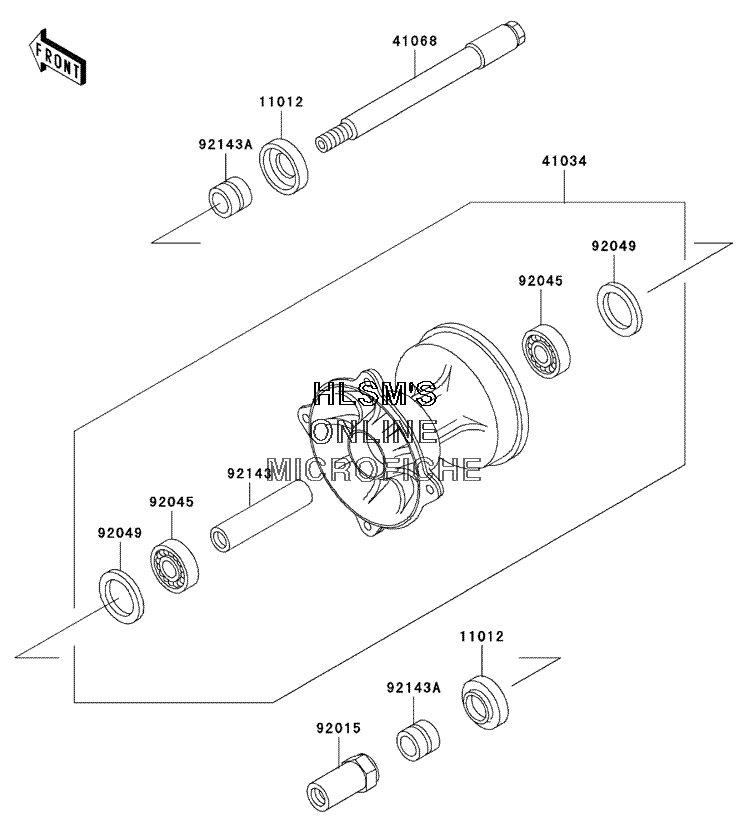

FRONT HUB для Kawasaki KX 500 - 2002 года выпуска
-
№АртикулНазвание
-
1101211012-1581 CAP, AXLECAP, AXLE
-
4103441034-1226 DRUM, ASSY., FRONT BRAKEDRUM, ASSY., FRONT BRAKE
-
4106841068-1342 AXLE, FRONTAXLE, FRONT
-
9201592015-1884 NUT, AXLE, 18MMNUT, AXLE, 18MM
-
9204592045-1284 BEARING, BALL, 69042RSBEARING, BALL, 69042RS
-
9204992049-1403 SEAL, OIL, BJNC, 2 25X37X5SEAL, OIL, BJNC, 2 25X37X5
-
9214392143-1580 COLLAR, FRONT BRAKE DRUM, L=72COLLAR, FRONT BRAKE DRUM, L=72
-
92143A92143-1581 COLLAR, FRONT AXLE, L=20COLLAR, FRONT AXLE, L=20
Все узлы модели:
- ACCESSORY
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL
- CABLES
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKSHAFT - PISTON(S)
- CYLINDER HEAD W/CYLINDER
- ENGINE COVER
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTING(S)
- FRONT FORK
- • FRONT HUB
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABELS
- MUFFLER(S)
- OWNER TOOLS
- RADIATOR
- REAR HUB
- SEAT
- SIDE COVERS
- STAND(S)
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TRANSMISSION
- WHEELS/TIRES
