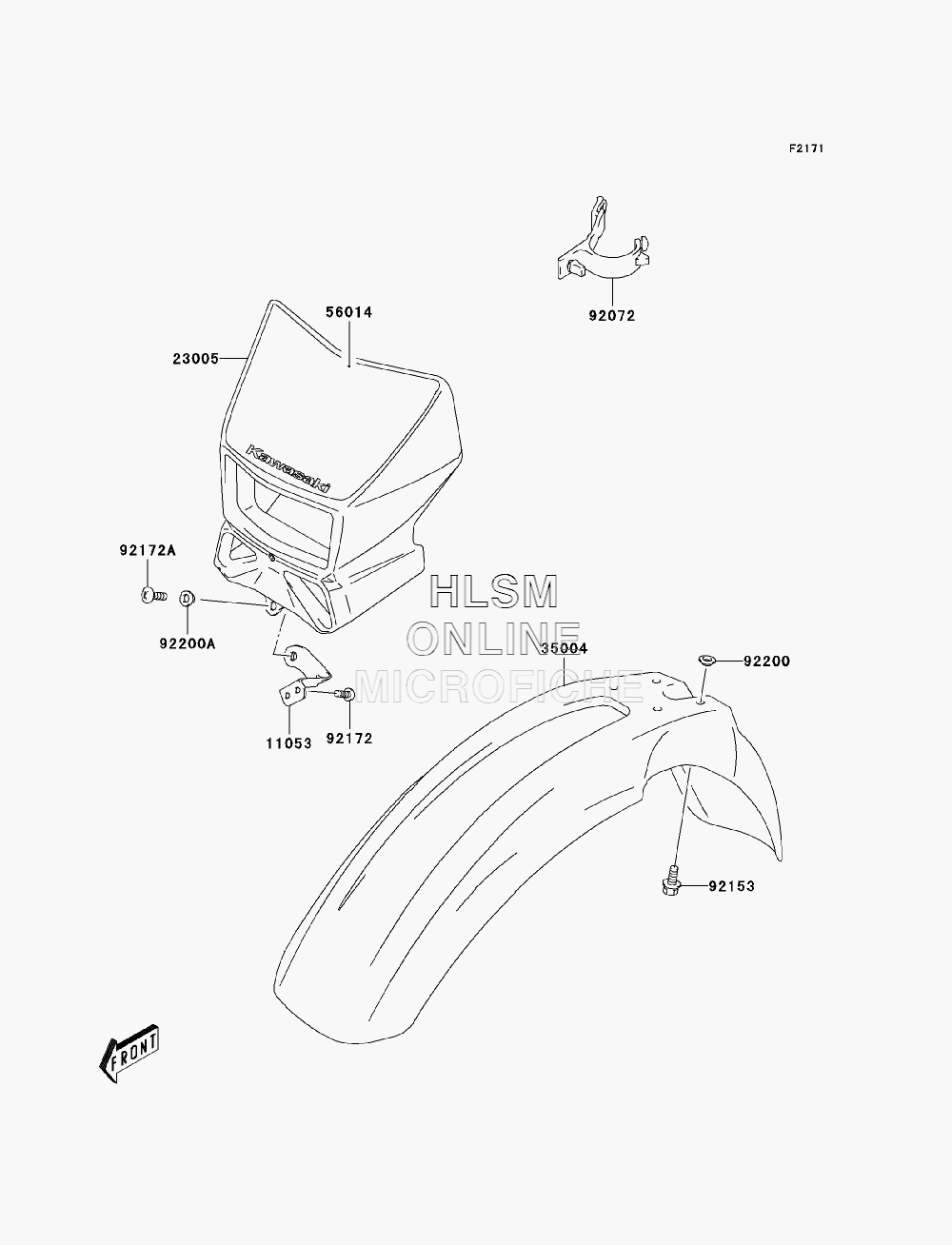

FENDER - FRONT для Kawasaki KLX 400R (KLX400-B1) - 2003 года выпуска
-
№АртикулНазвание
-
1105311053-S040 BRACKET, HEADLAMP COVERBRACKET, HEADLAMP COVER
-
2300523005-S004-535 BODY-COMP-HEAD LAMP, (L.GREEN)BODY-COMP-HEAD LAMP, (L.GREEN)
-
3500435004-S014-535 FENDER-FRONT, (L.GREEN)FENDER-FRONT, (L.GREEN)
-
5601456014-S023-558 EMBLEM, (WHITE/BLACK)EMBLEM, (WHITE/BLACK)
-
9207292072-S011 BAND, HEADLAMP COVERBAND, HEADLAMP COVER
-
9215392153-S320 BOLT, 6X16BOLT, 6X16
-
9217292172-S073 SCREW, 6X16SCREW, 6X16
-
92172A92172-S218 SCREW, LOWERSCREW, LOWER
-
9220092200-S174 WASHER, FRONT FENDERWASHER, FRONT FENDER
-
92200A92200-S208 WASHERWASHER
