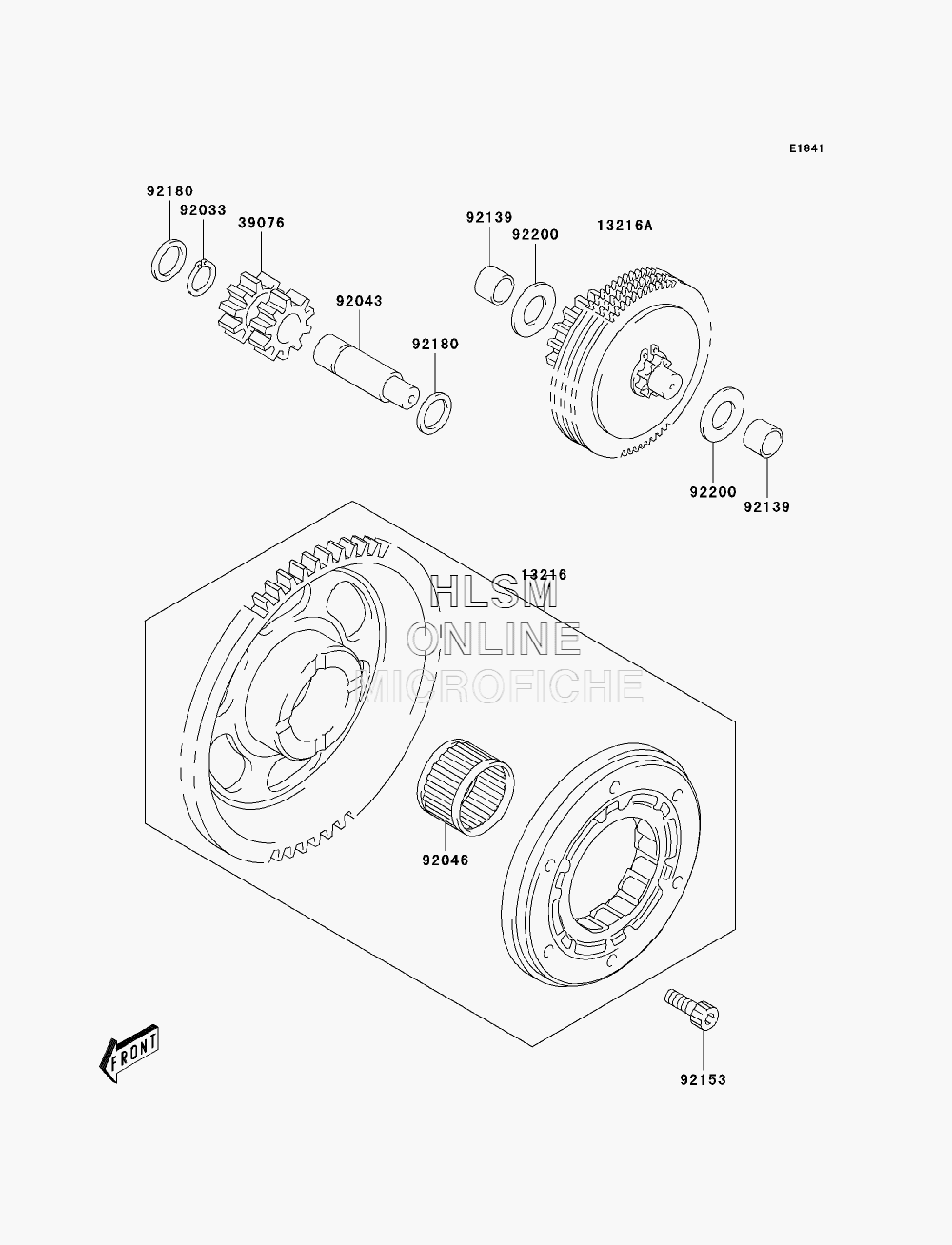

STARTER CLUTCH для Kawasaki KLX 400R (KLX400-B1) - 2003 года выпуска
-
№АртикулНазвание
-
1321613216-S010 GEAR-COMP, STARTERGEAR-COMP, STARTER
-
13216A13216-S011 GEAR-COMP, STARTER IDLE GEARGEAR-COMP, STARTER IDLE GEAR
-
3907639076-S005 LIMITER, STARTER IDLELIMITER, STARTER IDLE
-
9203392033-S023 RING-SNAPRING-SNAP
-
9204392043-S052 PINPIN
-
9204692046-S021 BEARING-NEEDLE, STARTER CLUTCHBEARING-NEEDLE, STARTER CLUTCH
-
9213992139-S024 BUSHINGBUSHING
-
9215392153-S024 BOLTBOLT
-
9218092180-S010 SHIM, STARTER IDLE GEARSHIM, STARTER IDLE GEAR
-
9220092200-S129 WASHER, LIMITER ASSYWASHER, LIMITER ASSY
