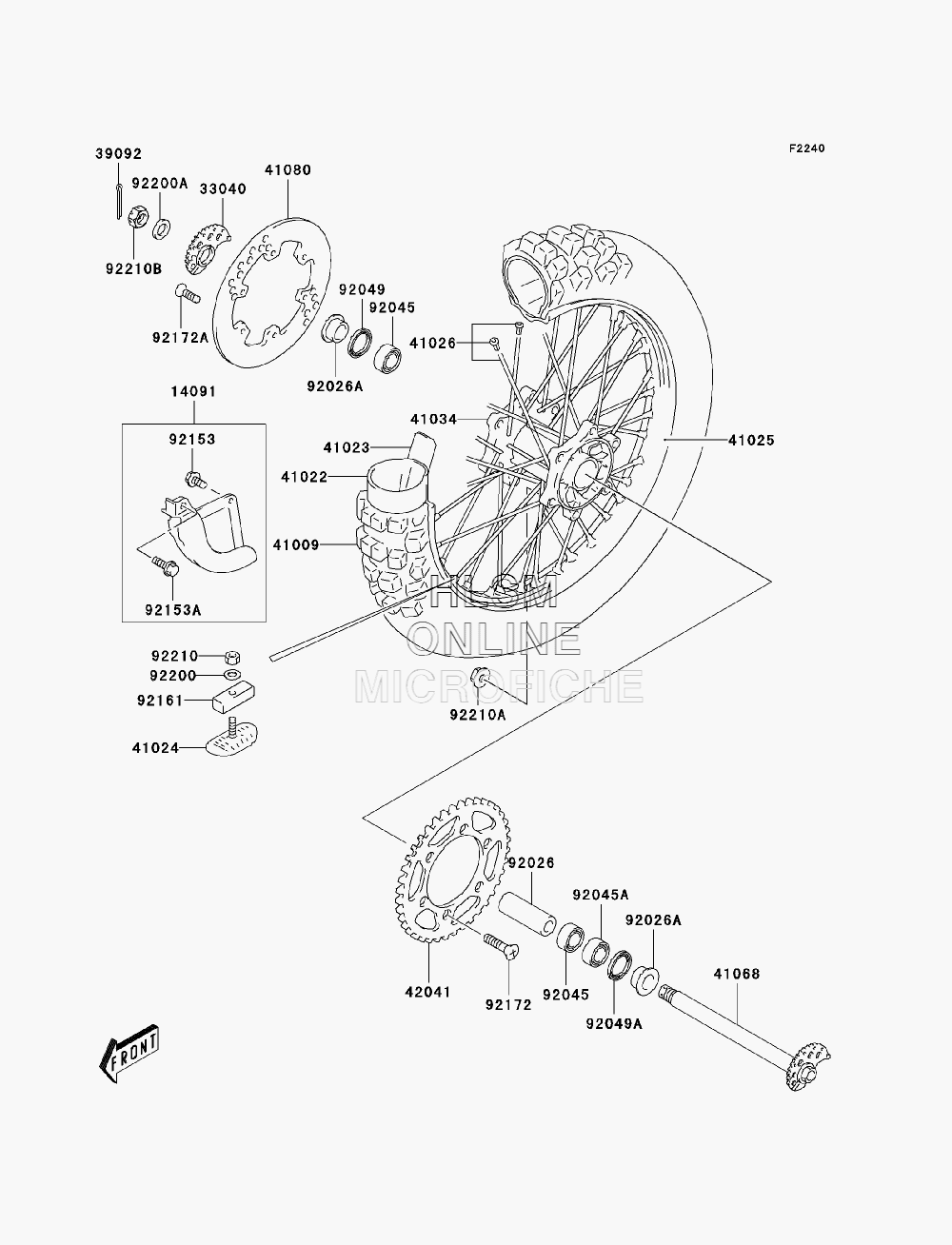

REAR HUB для Kawasaki KLX 400R (KLX400-B1) - 2003 года выпуска
-
№АртикулНазвание
-
1409114091-S100 COVER, DISCCOVER, DISC
-
3304033040-S004 ADJUSTER-CHAINADJUSTER-CHAIN
-
3909239092-S008 PIN-HAIR, REAR AXLEPIN-HAIR, REAR AXLE
-
4100941009-S018 TIRE, 120/90-18 65P(D)TIRE, 120/90-18 65P(D)
-
4102241022-S009 TUBE-TIRETUBE-TIRE
-
4102341023-S009 BAND-RIMBAND-RIM
-
4102441024-S003 STOPPER-RIMSTOPPER-RIM
-
4102541025-S014 RIM, 2.15X18RIM, 2.15X18
-
4102641026-S009 SPOKE-ASSYSPOKE-ASSY
-
4103441034-S008 DRUM-ASSYDRUM-ASSY
-
4106841068-S013 AXLE, REARAXLE, REAR
-
4108041080-S008 DISC, REARDISC, REAR
-
4204142041-S009 SPROCKET-HUB, 47TSPROCKET-HUB, 47T
-
9202692026-S133 SPACERSPACER
-
92026A92026-S134 SPACERSPACER
-
9204592045-S059 BEARING-BALLBEARING-BALL
-
92045A92045-S060 BEARING-BALLBEARING-BALL
-
9204992049-S009 SEAL-OIL, 29X42X6SEAL-OIL, 29X42X6
-
92049A92049-S060 SEAL-OIL, 29X47X5SEAL-OIL, 29X47X5
-
9215392153-S011 BOLTBOLT
-
92153A92153-S013 BOLTBOLT
-
9216192161-S144 DAMPERDAMPER
-
9217292172-S111 SCREW, SPROCKETSCREW, SPROCKET
-
92172A92172-S210 SCREW, 6X17.5SCREW, 6X17.5
-
9220092200-S028 WASHERWASHER
-
92200A92200-S201 WASHERWASHER
-
9221092210-S051 NUTNUT
-
92210A92210-S094 NUTNUT
-
92210B92210-S134 NUTNUT
