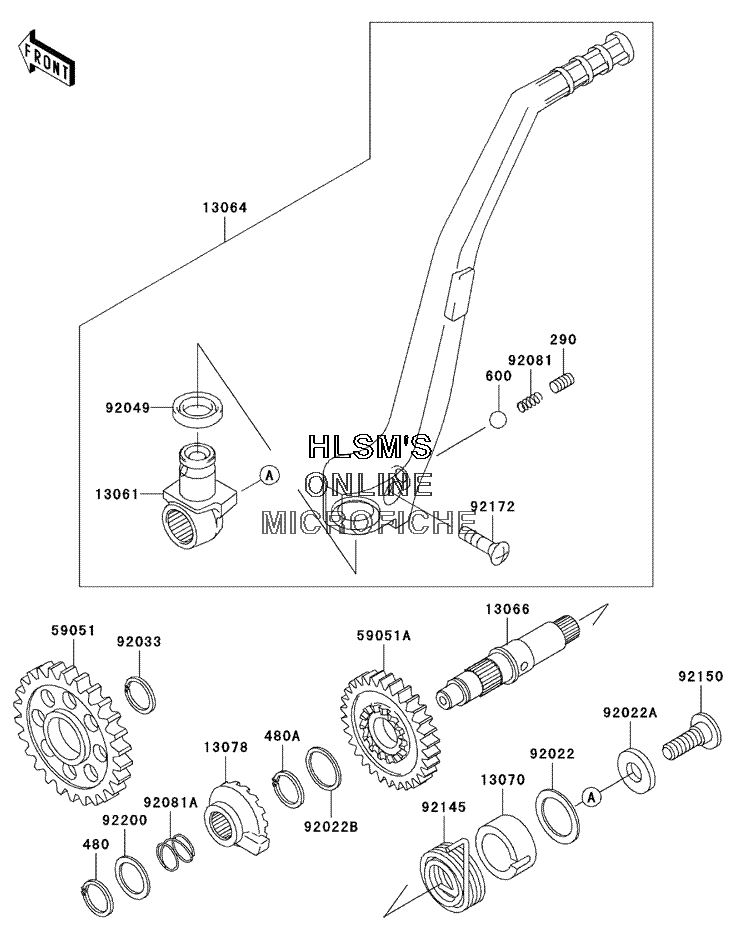

KICKSTARTER MECHANISM для Kawasaki KX 250 - 2003 года выпуска
-
№АртикулНазвание
-
290290P0812 SCREW, SET, SOCKETSCREW, SET, SOCKET
-
480480J1600 CIRCLIP, TYPE, C, 16MMCIRCLIP, TYPE, C, 16MM
-
480A480J1800 CIRCLIP, TYPE, C, 18MMCIRCLIP, TYPE, C, 18MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
1306113061-0002 BOSSBOSS
-
1306413064-0002 LEVER, ASSY., KICKLEVER, ASSY., KICK
-
1306613066-1107 SHAFT, KICKSHAFT, KICK
-
1307013070-1378 GUIDE, KICK SPRINGGUIDE, KICK SPRING
-
1307813078-1063 RATCHETRATCHET
-
5905159051-1271 GEAR, KICKSTARTER IDLE (26 TEETH)GEAR, KICKSTARTER IDLE (26 TEETH)
-
59051A59051-1339 GEAR, SPUR, KICK STARTERGEAR, SPUR, KICK STARTER
-
9202292022-1885 WASHERWASHER
-
92022A92022-1944 WASHERWASHER
-
92022B92022-271 WASHER, 18.3X22X0.5WASHER, 18.3X22X0.5
-
9203392033-029 RING, SNAP, 18MMRING, SNAP, 18MM
-
9204992049-1387 SEAL, OIL, KICK PEDALSEAL, OIL, KICK PEDAL
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-122 SPRING, RATCHETSPRING, RATCHET
-
9214592145-1517 SPRING, KICKSTARTERSPRING, KICKSTARTER
-
9215092150-1858 BOLT, 8X25BOLT, 8X25
-
9217292172-1088 SCREW, 6X30SCREW, 6X30
-
9220092200-1209 WASHER, KICKSHAFTWASHER, KICKSHAFT
