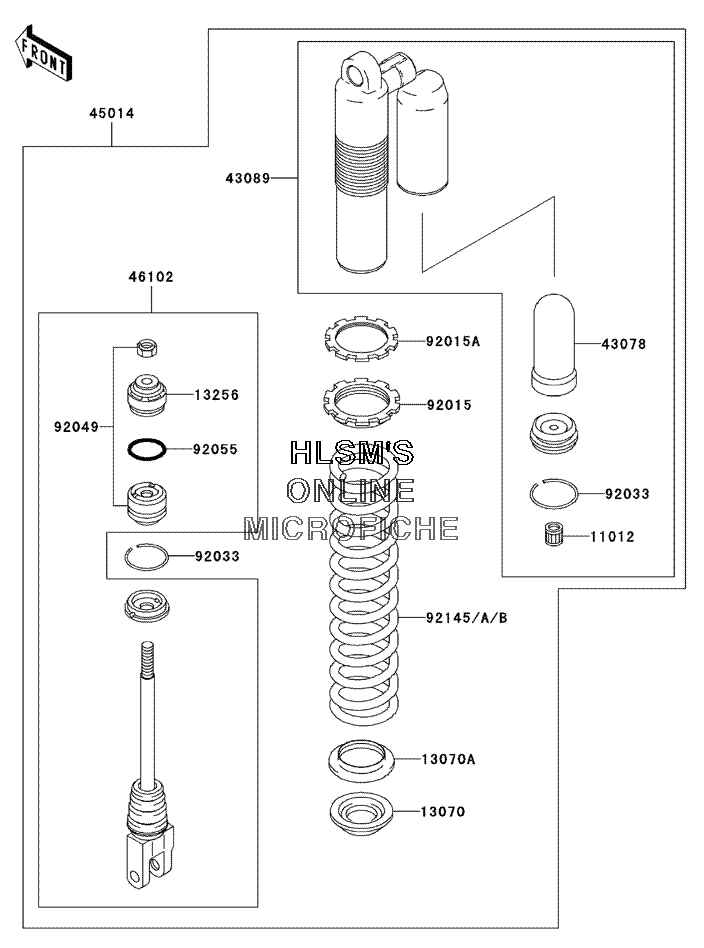

SUSPENSION - SHOCK ABSORBER для Kawasaki KX 250 - 2003 года выпуска
-
№АртикулНазвание
-
1101211012-1552 CAP, AIR VALVECAP, AIR VALVE
-
1307013070-1361 GUIDE, SPRINGGUIDE, SPRING
-
13070A13070-1362 GUIDE, SPRINGGUIDE, SPRING
-
1325613256-1062 PISTON, SHOCKABSORBERPISTON, SHOCKABSORBER
-
4307843078-1125 RESERVOIR, SHOCKABSORBERRESERVOIR, SHOCKABSORBER
-
4308943089-1170 CYLINDER, SHOCKABSORBERCYLINDER, SHOCKABSORBER
-
4501445014-1811-8V SHOCKABSORBER (I.SILVER)SHOCKABSORBER (I.SILVER)
-
4610246102-1471 ROD, SHOCKABSORBERROD, SHOCKABSORBER
-
9201592015-1703 NUT, SPRING ADJUSTNUT, SPRING ADJUST
-
92015A92015-1704 NUT, SPRING ADJUST LOCKNUT, SPRING ADJUST LOCK
-
9203392033-1209 RING, SNAPRING, SNAP
-
9204992049-1582 SEAL, OILSEAL, OIL
-
9205592055-1346 O-RING, RODO-RING, ROD
-
9214592145-0014-8V SPRING, SHOCKABSORBER, K=4.9 (SILVER) (OPT)SPRING, SHOCKABSORBER, K=4.9 (SILVER) (OPT)
-
92145A92145-0015-8V SPRING, SHOCKABSORBER, K=5.1 (SILVER)SPRING, SHOCKABSORBER, K=5.1 (SILVER)
-
92145B92145-0016-8V SPRING, SHOCKABSORBER, K=5.3 (SILVER) (OPT)SPRING, SHOCKABSORBER, K=5.3 (SILVER) (OPT)
