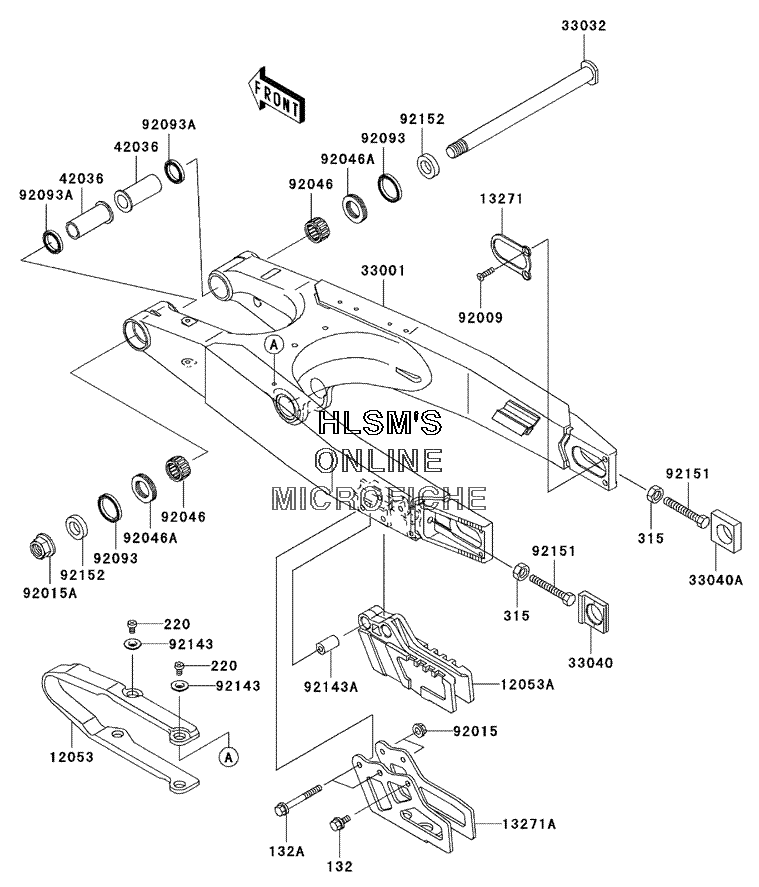

SUSPENSION - SWINGARM для Kawasaki KX 250 - 2003 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0650 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0508 SCREW, PAN, CROS, 5X8SCREW, PAN, CROS, 5X8
-
315315G1000 NUT, HEX, FINE, 10MMNUT, HEX, FINE, 10MM
-
1205312053-1422 GUIDE, CHAIN, DRIVE, FRONTGUIDE, CHAIN, DRIVE, FRONT
-
12053A12053-1468 GUIDE, CHAINGUIDE, CHAIN
-
1327113271-1833 PLATE, AXLEPLATE, AXLE
-
13271A13271-1834 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
3300133001-1629-CE ARM, COMP, SWING (SILVER)ARM, COMP, SWING (SILVER)
-
3303233032-1189 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1189 ADJUSTER, CHAIN (LEFT)ADJUSTER, CHAIN (LEFT)
-
33040A33040-1190 ADJUSTER, CHAIN (RIGHT)ADJUSTER, CHAIN (RIGHT)
-
4203642036-1326 SLEEVE, SWING ARM, L=54SLEEVE, SWING ARM, L=54
-
9200992009-1828 SCREW, 5X10SCREW, 5X10
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1316 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9204692046-1174 BEARING, NEEDLE, TA2230ZBEARING, NEEDLE, TA2230Z
-
92046A92046-1240 BEARING, NEEDLE, NTBR22356E01BEARING, NEEDLE, NTBR22356E01
-
9209392093-1434 SEAL, SDO29X35X4.5SEAL, SDO29X35X4.5
-
92093A92093-1435 SEAL, SDO22X29X5SEAL, SDO22X29X5
-
9214392143-1676 COLLARCOLLAR
-
92143A92143-1867 COLLAR, 6.5X14X24COLLAR, 6.5X14X24
-
9215192151-1397 BOLT, 10X55BOLT, 10X55
-
9215292152-1137 COLLAR, 17.1X29X7.5COLLAR, 17.1X29X7.5
