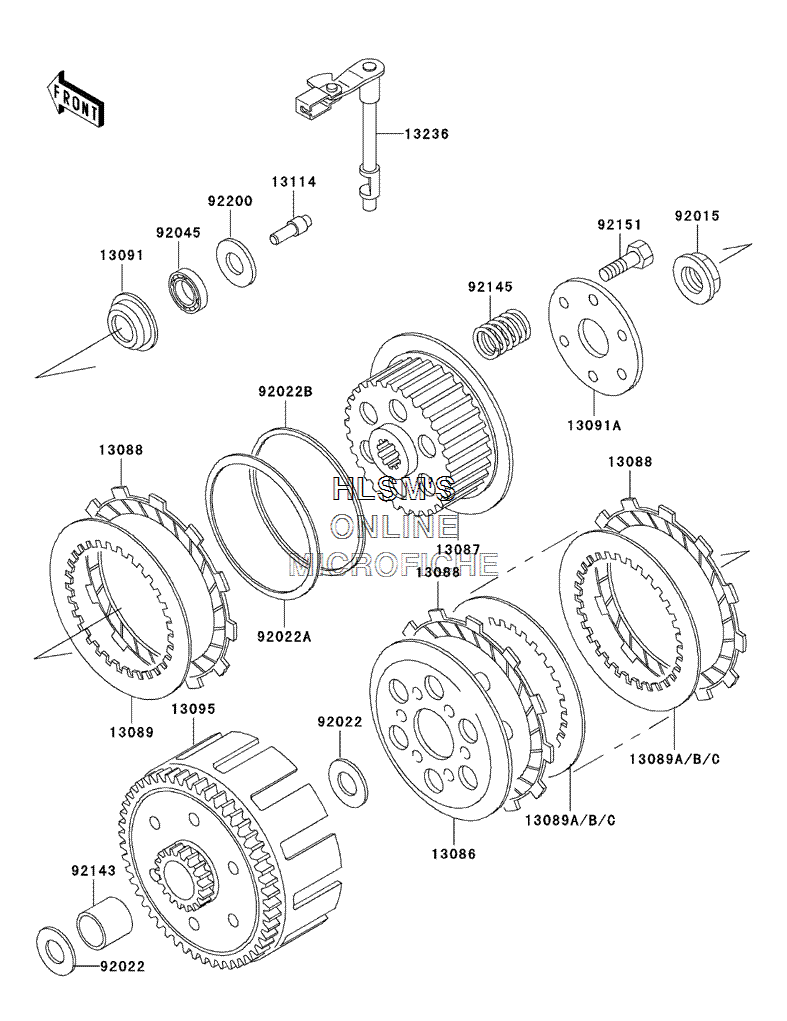

CLUTCH для Kawasaki KLX 300R - 2004 года выпуска
-
№АртикулНазвание
-
1308613086-1072 WHEEL, CLUTCHWHEEL, CLUTCH
-
1308713087-1150 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1125 PLATE, FRONTICTIONPLATE, FRONTICTION
-
1308913089-1085 PLATE, CLUTCHPLATE, CLUTCH
-
13089A13089-1094 PLATE, CLUTCH, T=1.6PLATE, CLUTCH, T=1.6
-
13089B13089-1116 PLATE, CLUTCH, T=2.0PLATE, CLUTCH, T=2.0
-
13089C13089-1117 PLATE, CLUTCH, T=1.2PLATE, CLUTCH, T=1.2
-
1309113091-1134 HOLDER, CLUTCH PUSHERHOLDER, CLUTCH PUSHER
-
13091A13091-1683 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-1360 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1311413114-1068 PUSHER, CLUTCHPUSHER, CLUTCH
-
1323613236-1259 LEVER, COMPLEVER, COMP
-
9201592015-1581 NUT, 16MMNUT, 16MM
-
9202292022-031 WASHER, 20.5X34X2WASHER, 20.5X34X2
-
92022A92022-1974 WASHER, JUDDER SPRINGWASHER, JUDDER SPRING
-
92022B92022-1993 WASHER, JUDDER SPRING SEATWASHER, JUDDER SPRING SEAT
-
9204592045-1236 BEARING, BALL, 627BEARING, BALL, 627
-
9214392143-1669 COLLARCOLLAR
-
9214592145-1095 SPRINGSPRING
-
9215192151-1218 BOLT, 5X35BOLT, 5X35
-
9220092200-1197 WASHER, 7X12.5X0.8WASHER, 7X12.5X0.8
