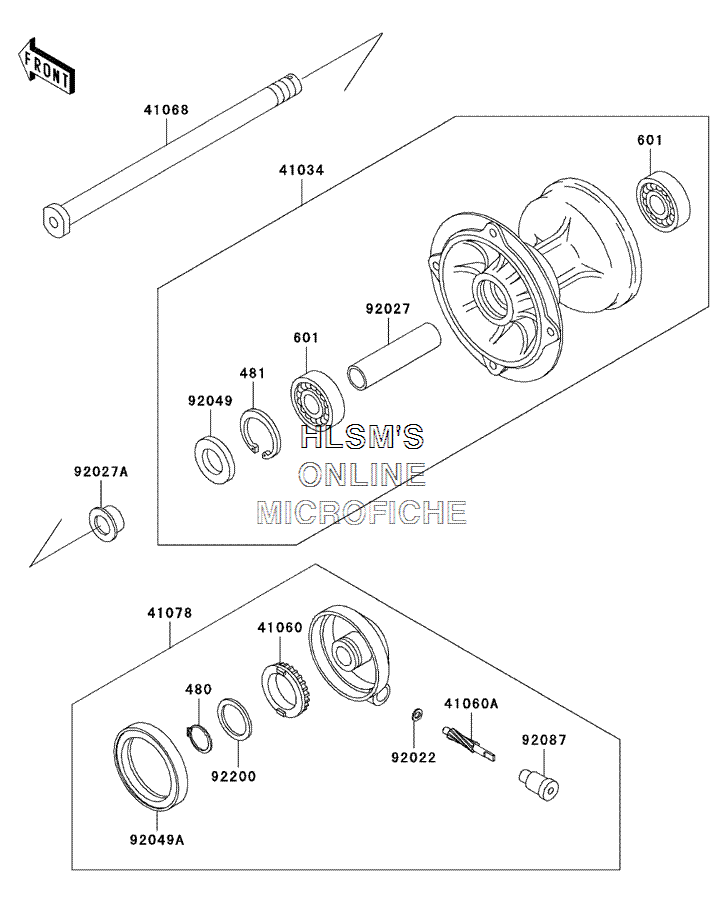

FRONT HUB для Kawasaki KLX 300R - 2004 года выпуска
-
№АртикулНазвание
-
480480J2400 CIRCLIP, TYPE, C, 24MMCIRCLIP, TYPE, C, 24MM
-
481481J3500 CIRCLIP, TYPE, C, 35MMCIRCLIP, TYPE, C, 35MM
-
601601B6202UG BEARING, BALL, #6202UGBEARING, BALL, #6202UG
-
4103441034-1219 DRUM, ASSY, FRONT BRAKEDRUM, ASSY, FRONT BRAKE
-
4106041060-1143 GEAR, METER SCREW (25 TEETH)GEAR, METER SCREW (25 TEETH)
-
41060A41060-1144 GEAR, METER SCREW (8 TEETH)GEAR, METER SCREW (8 TEETH)
-
4106841068-1352 AXLE, FRONTAXLE, FRONT
-
4107841078-1095 CASE, ASSY, METER GEARCASE, ASSY, METER GEAR
-
9202292022-1511 WASHER, 5X9.5X0.8WASHER, 5X9.5X0.8
-
9202792027-1958 COLLAR, 15.2X22.2X75COLLAR, 15.2X22.2X75
-
92027A92027-1959 COLLAR, L=12COLLAR, L=12
-
9204992049-1176 SEAL, OIL, MH20354.5SEAL, OIL, MH20354.5
-
92049A92049-1399 SEAL, OIL, SDD 50 62 7SEAL, OIL, SDD 50 62 7
-
9208792087-1060 BUSHING, METER GEARBUSHING, METER GEAR
-
9220092200-1137 WASHER, 24X31X0.8WASHER, 24X31X0.8
