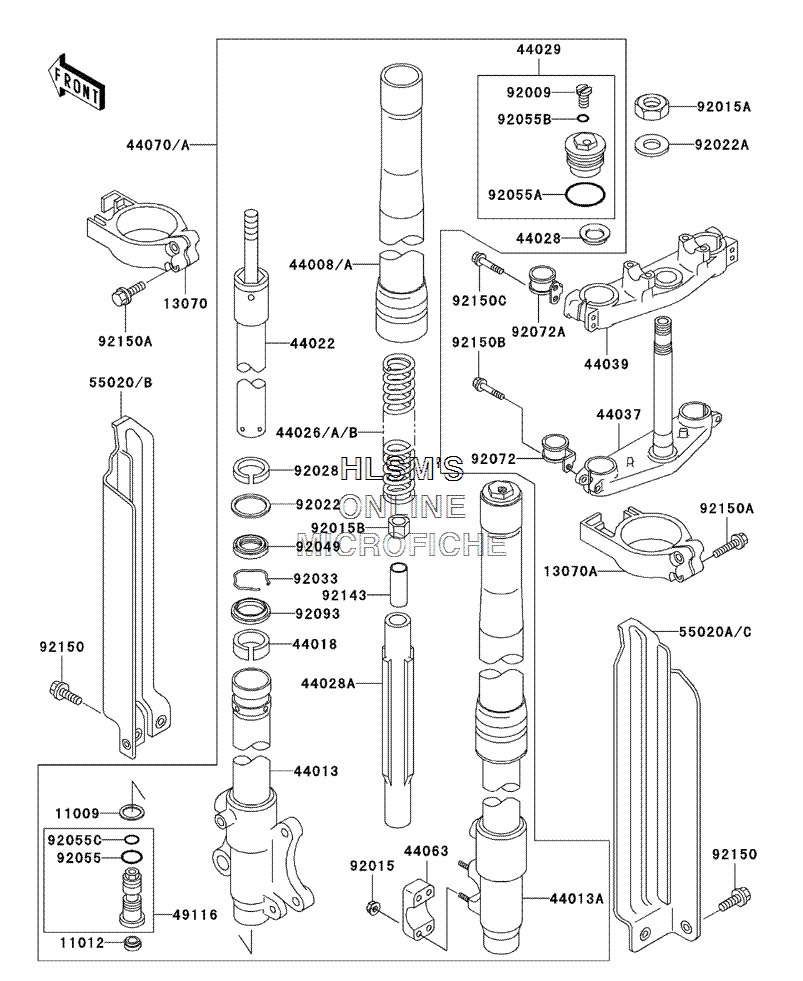

FRONT FORK для Kawasaki KLX 300R - 2004 года выпуска
-
№АртикулНазвание
-
1100911009-1592 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
1101211012-1381 CAP, FORK CYLINDERCAP, FORK CYLINDER
-
1307013070-1263-RZ GUIDE, FORK (LEFT) (WHITE)GUIDE, FORK (LEFT) (WHITE)
-
13070A13070-1264-RZ GUIDE, FORK (RIGHT) (WHITE)GUIDE, FORK (RIGHT) (WHITE)
-
4400844008-1028-JS PIPE, FORK OUTER (BRONZE)PIPE, FORK OUTER (BRONZE)
-
4401344013-1387 PIPE, FORK INNER (LEFT)PIPE, FORK INNER (LEFT)
-
44013A44013-1388 PIPE, FORK INNER (RIGHT)PIPE, FORK INNER (RIGHT)
-
4401844018-1056 PISTON, FORK, INNER PIPEPISTON, FORK, INNER PIPE
-
4402244022-1314 CYLINDER, FORKCYLINDER, FORK
-
4402644026-1551 SPRING, FRONT FORK, K=0.35 (OPTION)SPRING, FRONT FORK, K=0.35 (OPTION)
-
44026A44026-1552 SPRING, FRONT FORK, K=0.37 (OPTION)SPRING, FRONT FORK, K=0.37 (OPTION)
-
44026B44026-1603 SPRING, FRONT FORK, K=0.36SPRING, FRONT FORK, K=0.36
-
4402844028-1081 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
44028A44028-1084 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
4402944029-1149 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403744037-1291 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1240 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4406344063-1056 HOLDER, FRONT AXLEHOLDER, FRONT AXLE
-
4407044070-1565-JS DAMPER, ASSY, FORK, BRONZEDAMPER, ASSY, FORK, BRONZE
-
4911649116-1145 VALVE, ASSY, FORKVALVE, ASSY, FORK
-
5502055020-0004-RZ GUARD, FORK (LEFT) (WHITE)GUARD, FORK (LEFT) (WHITE)
-
55020A55020-0005-RZ GUARD, FORK (RIGHT) (WHITE)GUARD, FORK (RIGHT) (WHITE)
-
9200992009-1568 SCREWSCREW
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1653 NUT, STEERING STEM, 22MMNUT, STEERING STEM, 22MM
-
92015B92015-1839 NUTNUT
-
9202292022-1299 WASHERWASHER
-
92022A92022-1873 WASHER, STEERING STEMWASHER, STEERING STEM
-
9202892028-1581 BUSHINGBUSHING
-
9203392033-1077 RING, SNAPRING, SNAP
-
9204992049-1373 SEAL, OILSEAL, OIL
-
9205592055-1156 O-RINGO-RING
-
92055A92055-1333 O-RING, FORK, AIR TUBEO-RING, FORK, AIR TUBE
-
92055B92055-1441 O-RINGO-RING
-
92055C92055-1502 O-RING, FORK VALVEO-RING, FORK VALVE
-
9207292072-1267 BANDBAND
-
92072A92072-1268 BANDBAND
-
9209392093-1342 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9214392143-1643 COLLAR, FORKCOLLAR, FORK
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
-
92150A92150-1434 BOLT, FLANGED, 5X40BOLT, FLANGED, 5X40
-
92150B92150-1446 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92150C92150-1516 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
