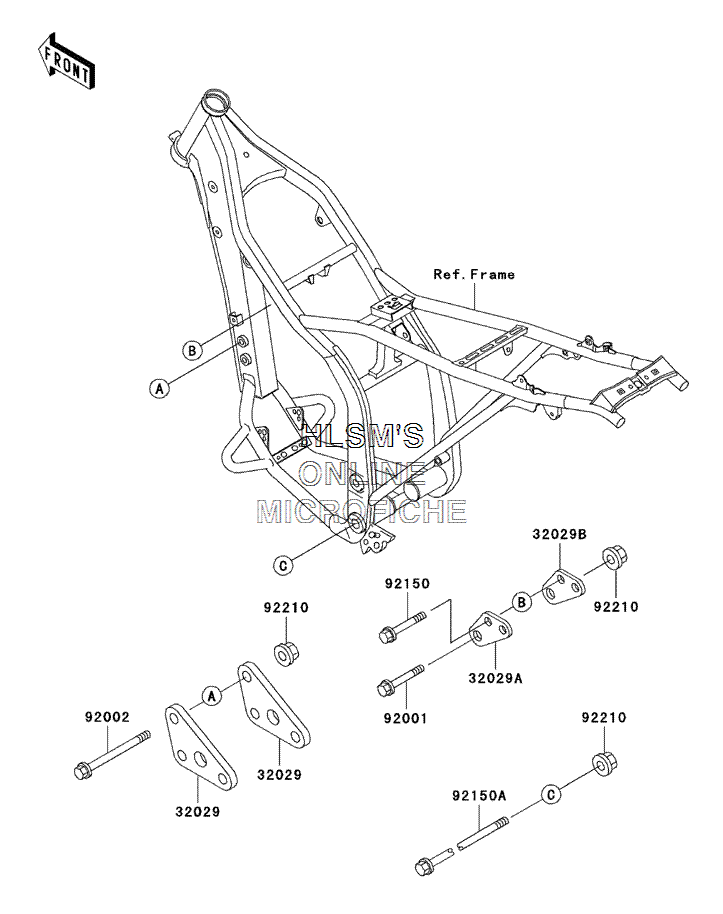

ENGINE MOUNT для Kawasaki KLX 300R - 2004 года выпуска
-
№АртикулНазвание
-
3202932029-1855 BRACKET, ENGINE, FRONTBRACKET, ENGINE, FRONT
-
32029A32029-1886 BRACKET, ENGINE, HEAD (LEFT)BRACKET, ENGINE, HEAD (LEFT)
-
32029B32029-1887 BRACKET, ENGINE, HEAD (RIGHT)BRACKET, ENGINE, HEAD (RIGHT)
-
9200192001-1499 BOLT, FLANGED, 10X44BOLT, FLANGED, 10X44
-
9200292002-1674 BOLT, 10X90BOLT, 10X90
-
9215092150-1168 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92150A92150-1642 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
