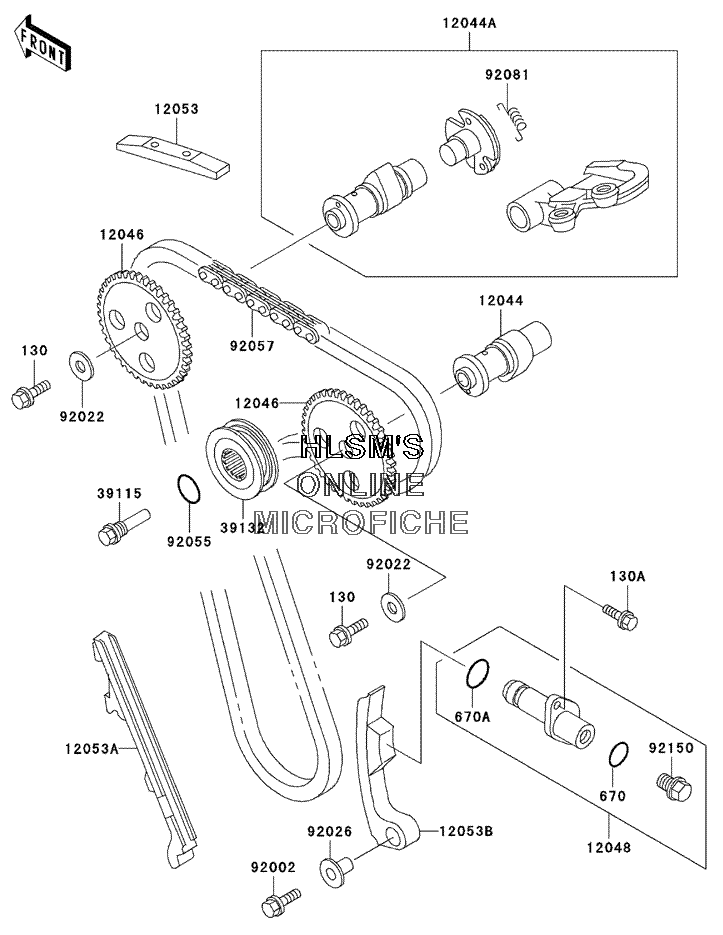

CAMSHAFT(S)/TENSIONER для Kawasaki KLR250 - 2005 года выпуска
-
№АртикулНазвание
-
130130G1025 BOLT, FLANGED, 10X25BOLT, FLANGED, 10X25
-
130A130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
670670D2010 O-RINGO-RING
-
670A670D2021 O-RING, 21MMO-RING, 21MM
-
1204412044-1351 CAMSHAFT, VALVE, INTAKECAMSHAFT, VALVE, INTAKE
-
12044A12044-5006 CAMSHAFT, VALVE, EXHAUSTCAMSHAFT, VALVE, EXHAUST
-
1204612046-1063 SPROCKET, 42TSPROCKET, 42T
-
1204812048-1066 TENSIONER, ASSY, CAM CHAINTENSIONER, ASSY, CAM CHAIN
-
1205312053-1107 GUIDE, CHAIN, UPPERGUIDE, CHAIN, UPPER
-
12053A12053-1125 GUIDE, CHAIN, FRONTGUIDE, CHAIN, FRONT
-
12053B12053-1126 GUIDE, CHAIN, REARGUIDE, CHAIN, REAR
-
3911539115-1051 SHAFT, IDLERSHAFT, IDLER
-
3913239132-1052 SPROCKET, ASSY, IDLERSPROCKET, ASSY, IDLER
-
9200292002-1478 BOLTBOLT
-
9202292022-1365 WASHER, 10X22X3WASHER, 10X22X3
-
9202692026-1231 SPACER, L=28.3SPACER, L=28.3
-
9205592055-1141 O-RING, ID=13.8O-RING, ID=13.8
-
9205792057-1170 CHAIN, CAM, 79RH2010, 158LCHAIN, CAM, 79RH2010, 158L
-
9208192081-1626 SPRING, DECOMPRESSORSPRING, DECOMPRESSOR
-
9215092150-1380 BOLT, TENSIONERBOLT, TENSIONER
