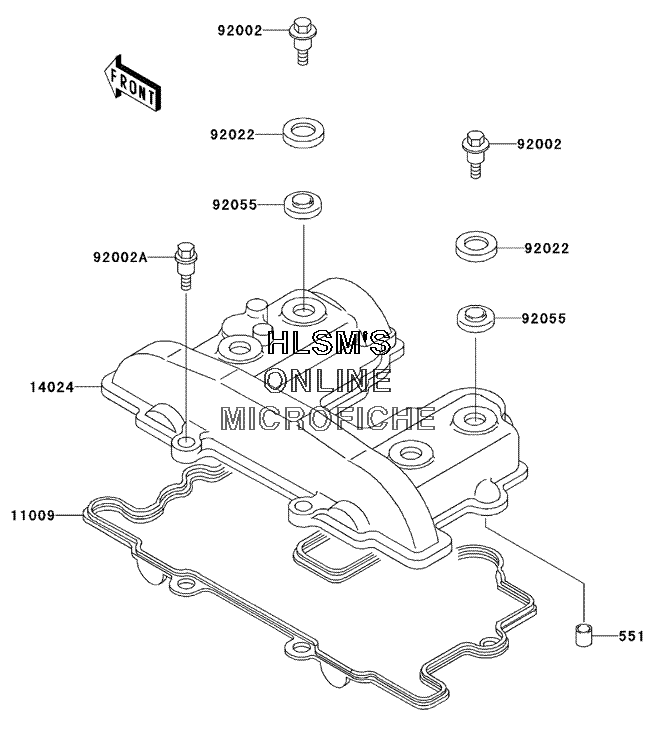

CYLINDER HEAD COVER для Kawasaki KLR250 - 2005 года выпуска
-
№АртикулНазвание
-
551551A1016 PIN, DOWELPIN, DOWEL
-
1100911009-1607 GASKET, HEAD COVERGASKET, HEAD COVER
-
1402414024-1218 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
9200292002-1327 BOLT, L=20.5BOLT, L=20.5
-
92002A92002-1382 BOLT, L=21BOLT, L=21
-
9202292022-1487 WASHER, HEAD COVER BOLTWASHER, HEAD COVER BOLT
-
9205592055-1225 O-RING, HEAD COVER BOLTO-RING, HEAD COVER BOLT
