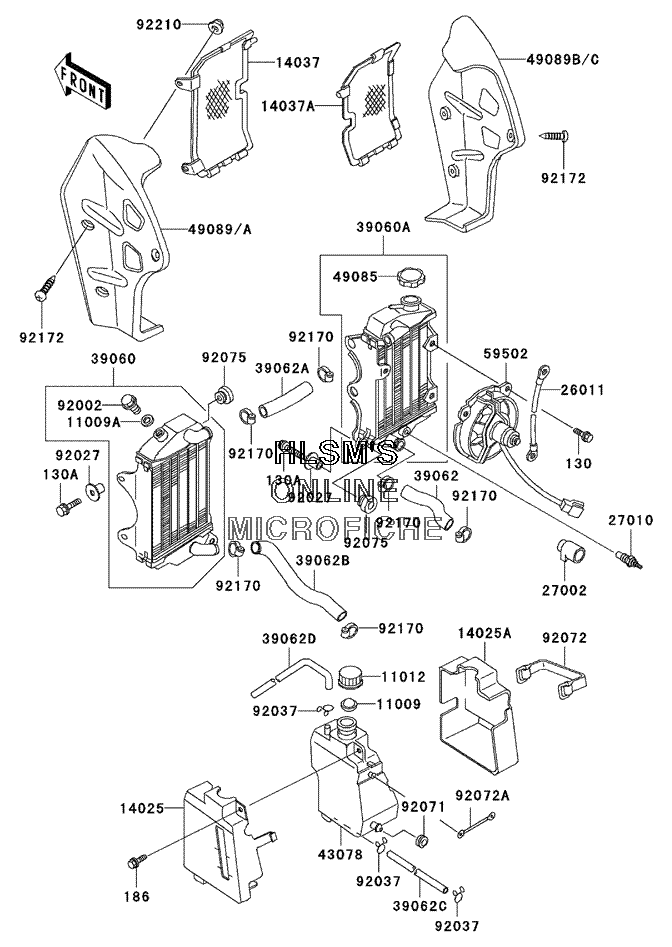

RADIATOR для Kawasaki KLR250 - 2005 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0620 BOLT, FLANGEDBOLT, FLANGED
-
186186J0618 BOLT, UPSET, WPBOLT, UPSET, WP
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
11009A11009-1152 GASKET, DRAIN BOLTGASKET, DRAIN BOLT
-
1101211012-1084 CAPCAP
-
1402514025-1991 COVER, RESERVOIRCOVER, RESERVOIR
-
14025A14025-1992 COVER, RESERVOIRCOVER, RESERVOIR
-
1403714037-1061 SCREEN (LEFT)SCREEN (LEFT)
-
14037A14037-1062 SCREEN (RIGHT)SCREEN (RIGHT)
-
2601126011-1278 WIRE, LEADWIRE, LEAD
-
2700227002-1051 RELAY, ASSYRELAY, ASSY
-
2701027010-1180 SWITCH, FANSWITCH, FAN
-
3906039060-1060 RADIATOR (LEFT)RADIATOR (LEFT)
-
39060A39060-1061 RADIATOR (RIGHT)RADIATOR (RIGHT)
-
3906239062-1083 HOSE, COOLINGHOSE, COOLING
-
39062A39062-1084 HOSE, COOLINGHOSE, COOLING
-
39062B39062-1085 HOSE, COOLINGHOSE, COOLING
-
39062C39062-1086 HOSE, COOLINGHOSE, COOLING
-
39062D39062-1132 HOSE, COOLINGHOSE, COOLING
-
4307843078-1061 RESERVOIR, TANKRESERVOIR, TANK
-
4908549085-1067 CAP, ASSY, PRESSURECAP, ASSY, PRESSURE
-
4908949089-1057-260 SHROUD, ENGINE (LEFT)A.REDSHROUD, ENGINE (LEFT)A.RED
-
49089B49089-1058-260 SHROUD, ENGINE (RIGHT)A.REDSHROUD, ENGINE (RIGHT)A.RED
-
5950259502-1052 FAN, ASSYFAN, ASSY
-
9200292002-1682 BOLT, RADIATOR DRAINBOLT, RADIATOR DRAIN
-
9202792027-1183 COLLARCOLLAR
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9207192071-1115 GROMMETGROMMET
-
9207292072-053 BAND, L=82BAND, L=82
-
92072A92072-1156 BAND, L=58BAND, L=58
-
9207592075-1352 DAMPERDAMPER
-
9217092170-1033 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9217292172-0099 SCREW, 6X14SCREW, 6X14
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
