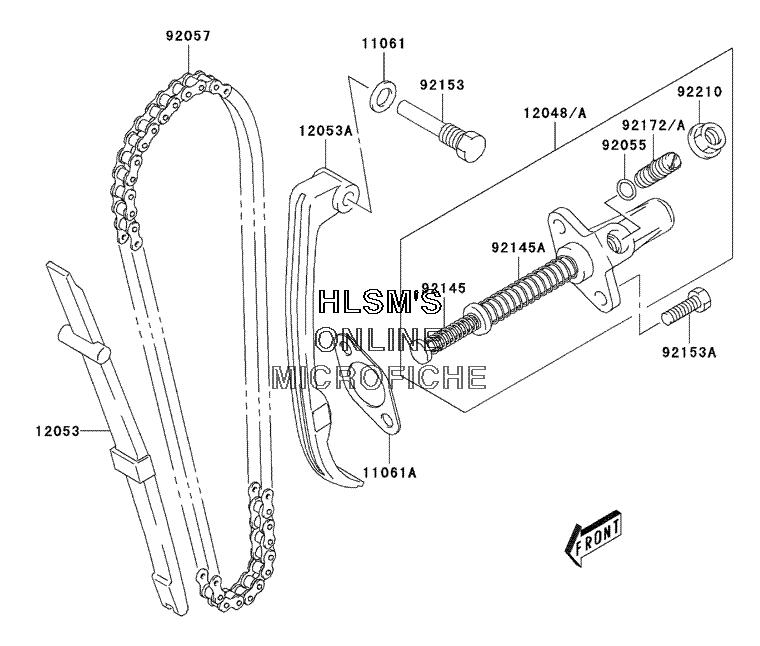

CAM CHAIN/TENSIONER для Kawasaki KLX 125 - 2005 года выпуска
-
№АртикулНазвание
-
1106111061-S020 GASKET, 8.2X14X1GASKET, 8.2X14X1
-
11061A11061-S038 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
12048A12048-S008 TENSIONER, ASSYTENSIONER, ASSY
-
1205312053-S005 GUIDE, CHAINGUIDE, CHAIN
-
12053A12053-S006 GUIDE, CHAINGUIDE, CHAIN
-
9205592055-S032 O-RING, D=1.9O-RING, D=1.9
-
9205792057-S004 CHAINCHAIN
-
9214592145-S038 SPRINGSPRING
-
92145A92145-S040 SPRINGSPRING
-
9215392153-S054 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
92153A92153-S127 BOLTBOLT
-
92172A92172-S282 SCREWSCREW
-
9221092210-S026 NUTNUT
