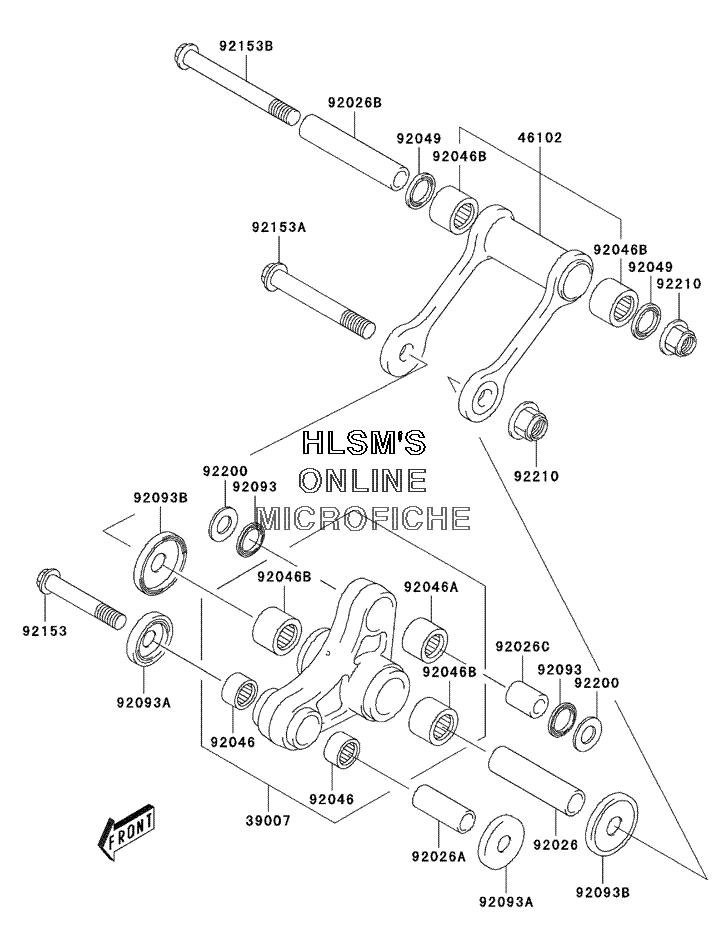

SUSPENSION - REAR для Kawasaki KLX 125 - 2005 года выпуска
-
№АртикулНазвание
-
3900739007-S002 ARM, SUSP, REAR CUSHIONARM, SUSP, REAR CUSHION
-
4610246102-S001 ROD, REAR CUSHIONROD, REAR CUSHION
-
9202692026-S040 SPACER, REAR CUSHIONSPACER, REAR CUSHION
-
92026A92026-S044 SPACER, REAR CUSHIONSPACER, REAR CUSHION
-
92026B92026-S045 SPACER, REAR CUSHION RODSPACER, REAR CUSHION ROD
-
92026C92026-S046 SPACER, REAR CUSHIONSPACER, REAR CUSHION
-
9204692046-S008 BEARING, NEEDLE, 14X20X12BEARING, NEEDLE, 14X20X12
-
92046A92046-S009 BEARING, NEEDLE, 16X22X12BEARING, NEEDLE, 16X22X12
-
92046B92046-S010 BEARING, NEEDLE, 17X24X20BEARING, NEEDLE, 17X24X20
-
9204992049-S024 SEAL, OIL, REAR CUSHION RODSEAL, OIL, REAR CUSHION ROD
-
9209392093-S010 SEAL, REAR CUSHIONSEAL, REAR CUSHION
-
92093A92093-S013 SEAL, REAR CUSHIONSEAL, REAR CUSHION
-
92093B92093-S014 SEAL, REAR CUSHIONSEAL, REAR CUSHION
-
9215392153-S163 BOLT, 10X64BOLT, 10X64
-
92153A92153-S180 BOLT, REAR CUSHIONBOLT, REAR CUSHION
-
92153B92153-S181 BOLT, REAR CUSHIONBOLT, REAR CUSHION
-
9220092200-S081 WASHERWASHER
-
9221092210-S007 NUTNUT
