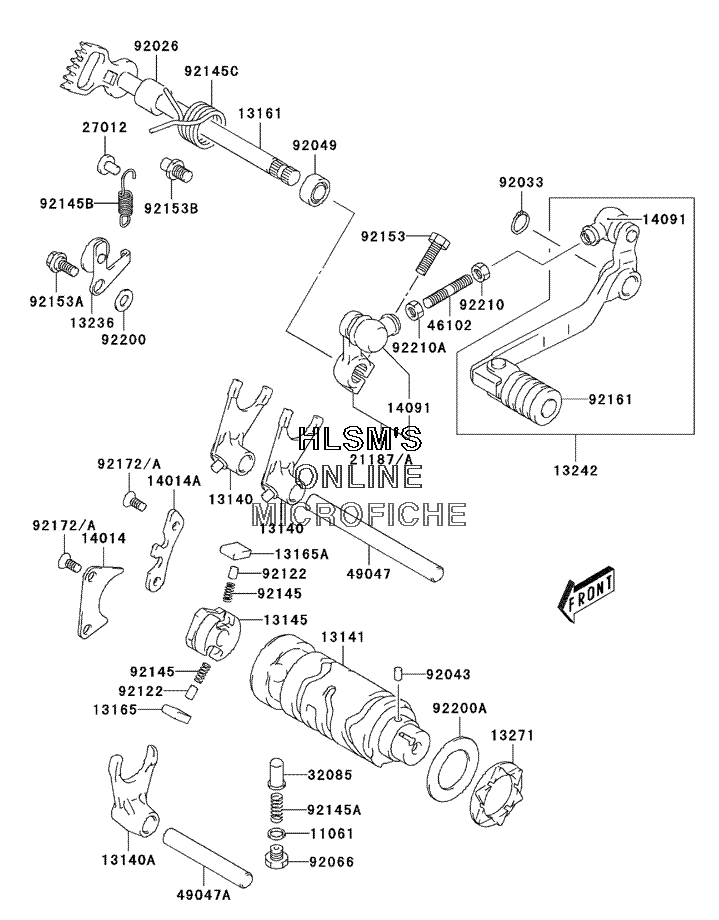

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KLX 125 - 2005 года выпуска`
-
№АртикулНазвание
-
1106111061-S006 GASKET, 13.8X18.8X0.4GASKET, 13.8X18.8X0.4
-
1314013140-S003 FORK, SHIFTFORK, SHIFT
-
13140A13140-S004 FORK, SHIFTFORK, SHIFT
-
1314113141-S003 DRUM, CHANGEDRUM, CHANGE
-
1314513145-S002 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
1316113161-S002 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1316513165-S003 PAWLPAWL
-
13165A13165-S004 PAWLPAWL
-
1323613236-S002 LEVER, COMPLEVER, COMP
-
1324213242-S001 LEVER, ASSY, CHANGELEVER, ASSY, CHANGE
-
1327113271-S021 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1401414014-S002 PLATE, POSITIONPLATE, POSITION
-
14014A14014-S003 PLATE, POSITIONPLATE, POSITION
-
1409114091-S064 COVERCOVER
-
21187A21187-S005 ARM, ASSYARM, ASSY
-
2701227012-S002 HOOKHOOK
-
3208532085-S004 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
4610246102-S003 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
4904749047-S001 ROD, SHIFT, L=109ROD, SHIFT, L=109
-
49047A49047-S002 ROD, SHIFTROD, SHIFT
-
9202692026-S037 SPACER, 12X20X15.3SPACER, 12X20X15.3
-
9203392033-S023 RING, SNAPRING, SNAP
-
9204392043-S020 PINPIN
-
9204992049-S020 SEAL, OIL, 12X22X9SEAL, OIL, 12X22X9
-
9206692066-S016 PLUGPLUG
-
9212292122-S005 ROLLER, 5X8ROLLER, 5X8
-
9214592145-S037 SPRINGSPRING
-
92145A92145-S039 SPRINGSPRING
-
92145B92145-S043 SPRINGSPRING
-
92145C92145-S044 SPRINGSPRING
-
9215392153-S127 BOLTBOLT
-
92153A92153-S136 BOLT, 6X14.6BOLT, 6X14.6
-
92153B92153-S139 BOLTBOLT
-
9216192161-S057 DAMPER, GEAR SHIFT PEDALDAMPER, GEAR SHIFT PEDAL
-
92172A92172-S112 SCREWSCREW
-
9220092200-S051 WASHERWASHER
-
92200A92200-S064 WASHER, 25X40X1.0WASHER, 25X40X1.0
-
9221092210-S093 NUTNUT
-
92210A92210-S095 NUTNUT
