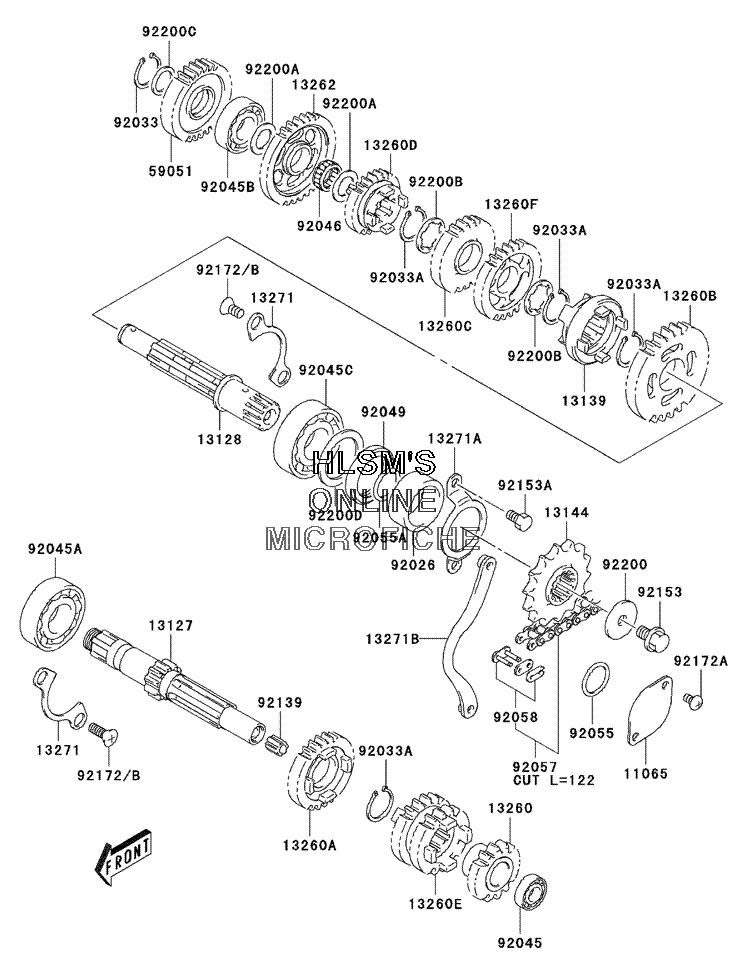

TRANSMISSION для Kawasaki KLX 125 - 2005 года выпуска
-
№АртикулНазвание
-
1106511065-S017 CAPCAP
-
1312713127-S004 SHAFT, TRANSMISSION INPUTSHAFT, TRANSMISSION INPUT
-
1312813128-S005 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1313913139-S001 SHIFTERSHIFTER
-
1314413144-S002 SPROCKET, OUTPUT (14 TEETH)SPROCKET, OUTPUT (14 TEETH)
-
1326013260-S003 GEAR, INPUT 2ND (14 TEETH)GEAR, INPUT 2ND (14 TEETH)
-
13260A13260-S005 GEAR, INPUT 5TH (26 TEETH)GEAR, INPUT 5TH (26 TEETH)
-
13260B13260-S007 GEAR, OUTPUT 2ND (26 TEETH)GEAR, OUTPUT 2ND (26 TEETH)
-
13260C13260-S009 GEAR, OUTPUT 4TH (23 TEETH)GEAR, OUTPUT 4TH (23 TEETH)
-
13260D13260-S010 GEAR, OUTPUT 5TH (24 TEETH)GEAR, OUTPUT 5TH (24 TEETH)
-
13260E13260-S012 GEAR, INPUT 3RD AND 4TH (19/21 TEETH)GEAR, INPUT 3RD AND 4TH (19/21 TEETH)
-
13260F13260-S013 GEAR, OUTPUT 3RD (26 TEETH)GEAR, OUTPUT 3RD (26 TEETH)
-
1326213262-S004 GEAR, OUTPUT LOW (33 TEETH)GEAR, OUTPUT LOW (33 TEETH)
-
1327113271-S019 PLATE, DRIVE SHAFT BEARINGPLATE, DRIVE SHAFT BEARING
-
13271A13271-S020 PLATE, DRIVESHAFT OIL SEALPLATE, DRIVESHAFT OIL SEAL
-
13271B13271-S024 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
5905159051-S003 GEAR, SPUR, KICK STARTER IDLEGEAR, SPUR, KICK STARTER IDLE
-
9202692026-S038 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
9203392033-S017 RING, SNAPRING, SNAP
-
92033A92033-S020 RING, SNAPRING, SNAP
-
9204592045-S023 BEARING, BALLBEARING, BALL
-
92045A92045-S024 BEARING, BALL, 20X47X14BEARING, BALL, 20X47X14
-
92045B92045-S027 BEARING, BALL, 15X36X12BEARING, BALL, 15X36X12
-
92045C92045-S034 BEARING, BALL, 22X50X14BEARING, BALL, 22X50X14
-
9204692046-S007 BEARING, NEEDLE, 15X19X7.8BEARING, NEEDLE, 15X19X7.8
-
9204992049-S019 SEAL, OIL, 30X40X6SEAL, OIL, 30X40X6
-
9205592055-S007 O-RING, D=2.4O-RING, D=2.4
-
92055A92055-S034 O-RING, D=2.5O-RING, D=2.5
-
9205792057-S007 CHAIN, DRIVECHAIN, DRIVE
-
9205892058-S001 JOINT, CHAINJOINT, CHAIN
-
9213992139-S007 BUSHINGBUSHING
-
9215392153-S015 BOLTBOLT
-
92153A92153-S125 BOLTBOLT
-
92172A92172-S110 SCREWSCREW
-
92172B92172-S112 SCREWSCREW
-
9220092200-S052 WASHERWASHER
-
92200A92200-S053 WASHERWASHER
-
92200B92200-S059 WASHERWASHER
-
92200C92200-S062 WASHERWASHER
-
92200D92200-S065 WASHERWASHER
