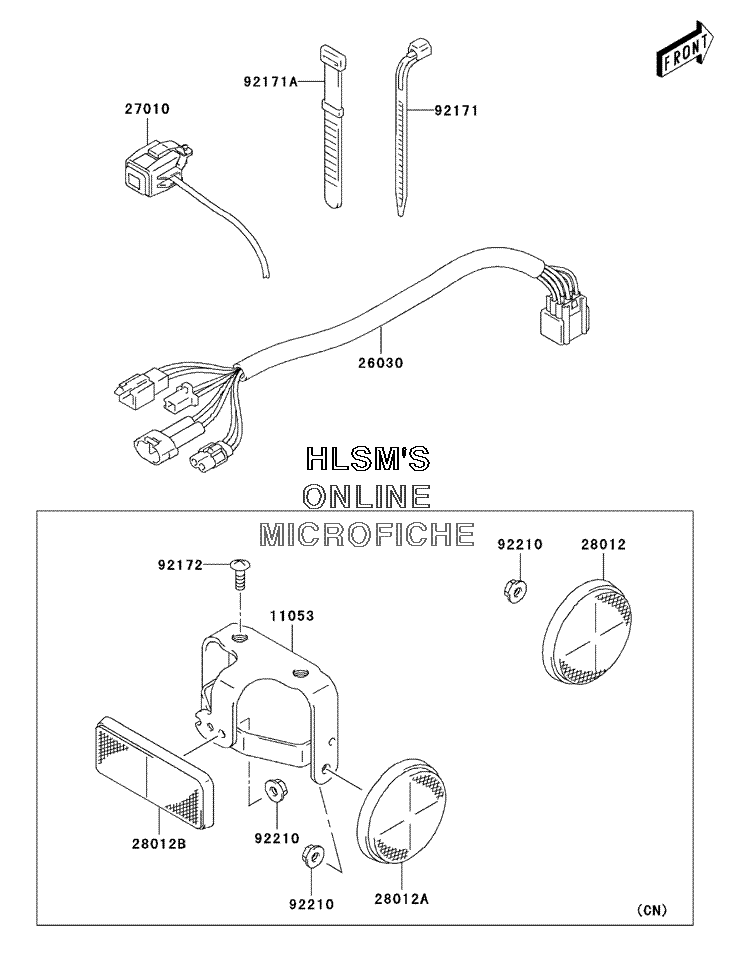

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki KLX 125L - 2005 года выпуска`
-
№АртикулНазвание
-
1105311053-S003 BRACKET, RR (CANADA ONLY)BRACKET, RR (CANADA ONLY)
-
2603026030-S004 HARNESSHARNESS
-
2701027010-S018 SWITCHSWITCH
-
2801228012-S001 REFLECTOR, REFLEX, FRONT (CANADA ONLY)REFLECTOR, REFLEX, FRONT (CANADA ONLY)
-
28012A28012-S002 REFLECTOR, REFLEX, REAR (CANADA ONLY)REFLECTOR, REFLEX, REAR (CANADA ONLY)
-
28012B28012-S003 REFLECTOR, REFLEX, REAR (CANADA ONLY)REFLECTOR, REFLEX, REAR (CANADA ONLY)
-
9217192171-S016 CLAMP, L=165CLAMP, L=165
-
92171A92171-S035 CLAMP, L=120CLAMP, L=120
-
9217292172-S017 SCREW (CANADA ONLY)SCREW (CANADA ONLY)
-
9221092210-S067 NUT (CANADA ONLY)NUT (CANADA ONLY)
