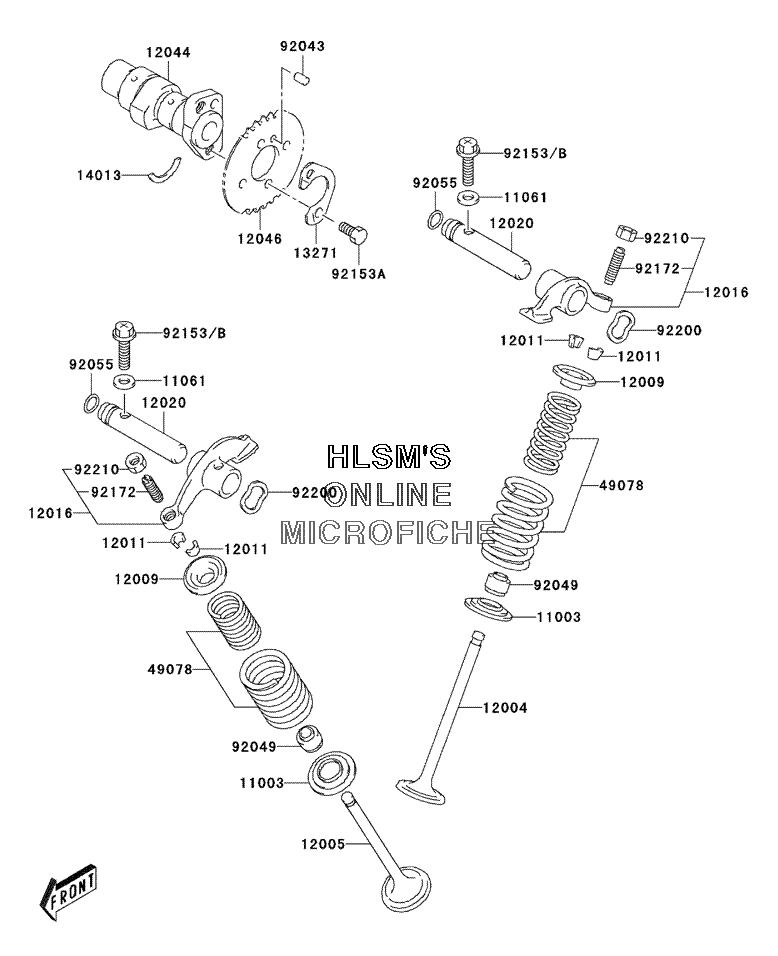

VALVE(S) W/ CAMSHAFT(S) для Kawasaki KLX 125L - 2005 года выпуска
-
№АртикулНазвание
-
1100311003-S002 SEAT, VALVESEAT, VALVE
-
1106111061-S001 GASKET, 5.8X13X1.2GASKET, 5.8X13X1.2
-
1200412004-S003 VALVE, INTAKEVALVE, INTAKE
-
1200512005-S003 VALVE, EXHAUSTVALVE, EXHAUST
-
1200912009-S002 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
1201112011-S002 COLLETCOLLET
-
1201612016-S005 ARM, ROCKERARM, ROCKER
-
1202012020-S003 SHAFT, ROCKERSHAFT, ROCKER
-
1204412044-S002 CAMSHAFT, VALVECAMSHAFT, VALVE
-
1204612046-S004 SPROCKET, CAMSHAFTSPROCKET, CAMSHAFT
-
1327113271-S018 PLATEPLATE
-
1401314013-S001 RING, POSITION, CAMSHAFTRING, POSITION, CAMSHAFT
-
4907849078-S002 SPRING, ENGINE VALVESPRING, ENGINE VALVE
-
9204392043-S008 PIN, 5X8PIN, 5X8
-
9204992049-S021 SEAL, OILSEAL, OIL
-
9205592055-S033 O-RING, D=1.9O-RING, D=1.9
-
92153A92153-S099 BOLTBOLT
-
92153B92153-S133 BOLTBOLT
-
9217292172-S096 SCREWSCREW
-
9220092200-S057 WASHERWASHER
-
9221092210-S049 NUTNUT
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE PEDAL
- CAM CHAIN/TENSIONER
- CARBURETOR
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CRANKCASE
- CRANKSHAFT - PISTON(S)
- CYLINDER
- CYLINDER HEAD
- ENGINE (OPTIONAL PARTS)
- ENGINE COVER
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRONT FORK
- FRONT HUB
- FUEL FILTER
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GENERATOR
- HANDLEBAR
- HANDLEBAR LEVER(S)
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABELS
- MUFFLER(S)
- OIL PUMP
- REAR HUB
- SEAT
- SIDE COVERS
- STAND(S)
- SUSPENSION - REAR W/ SHOCK ABSORBER
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TRANSMISSION
- UNDER BRACKET
- • VALVE(S) W/ CAMSHAFT(S)
