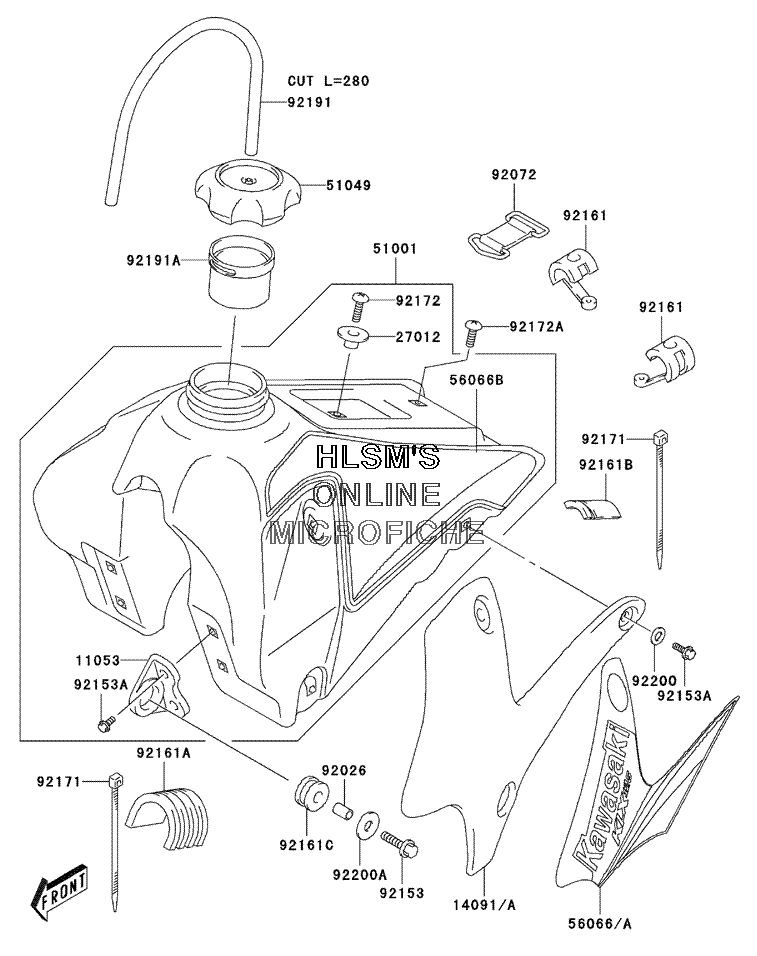

FUEL TANK для Kawasaki KLX 125L - 2005 года выпуска
-
№АртикулНазвание
-
1105311053-S001 BRACKET, FUEL TANK, FRBRACKET, FUEL TANK, FR
-
1409114091-S062-908 COVER, FUEL TANK (RIGHT) (L.GREEN)COVER, FUEL TANK (RIGHT) (L.GREEN)
-
14091A14091-S063-908 COVER, FUEL TANK (LEFT) (L.GREEN)COVER, FUEL TANK (LEFT) (L.GREEN)
-
2701227012-S003 HOOK, SEAT FRONTHOOK, SEAT FRONT
-
5100151001-S024-539 TANK, COMP, FUEL, BLACKTANK, COMP, FUEL, BLACK
-
5104951049-S004 CAP, TANKCAP, TANK
-
5606656066-S048-910 PATTERN (RIGHT), BLK/GLD/GRN/WHTPATTERN (RIGHT), BLK/GLD/GRN/WHT
-
56066A56066-S049-910 PATTERN (LEFT), BLK/GLD/GRN/WHTPATTERN (LEFT), BLK/GLD/GRN/WHT
-
56066B56066-S050-913 PATTERN, SET, TANK, BLACK/GREENPATTERN, SET, TANK, BLACK/GREEN
-
9202692026-S049 SPACER, FUEL TANK, FRSPACER, FUEL TANK, FR
-
9207292072-S004 BAND, FUEL TANK, RRBAND, FUEL TANK, RR
-
9215392153-S003 BOLTBOLT
-
92153A92153-S144 BOLTBOLT
-
9216192161-S062 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161A92161-S063 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161B92161-S064 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161C92161-S065 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9217192171-S056 CLAMP, FUEL TANK CUSHIONCLAMP, FUEL TANK CUSHION
-
9217292172-S019 SCREWSCREW
-
92172A92172-S055 SCREWSCREW
-
9219192191-S028 TUBE, FUEL TANK BREATHERTUBE, FUEL TANK BREATHER
-
92191A92191-S029 TUBE, FUEL TANK FILLERTUBE, FUEL TANK FILLER
-
9220092200-S078 WASHERWASHER
-
92200A92200-S080 WASHERWASHER
