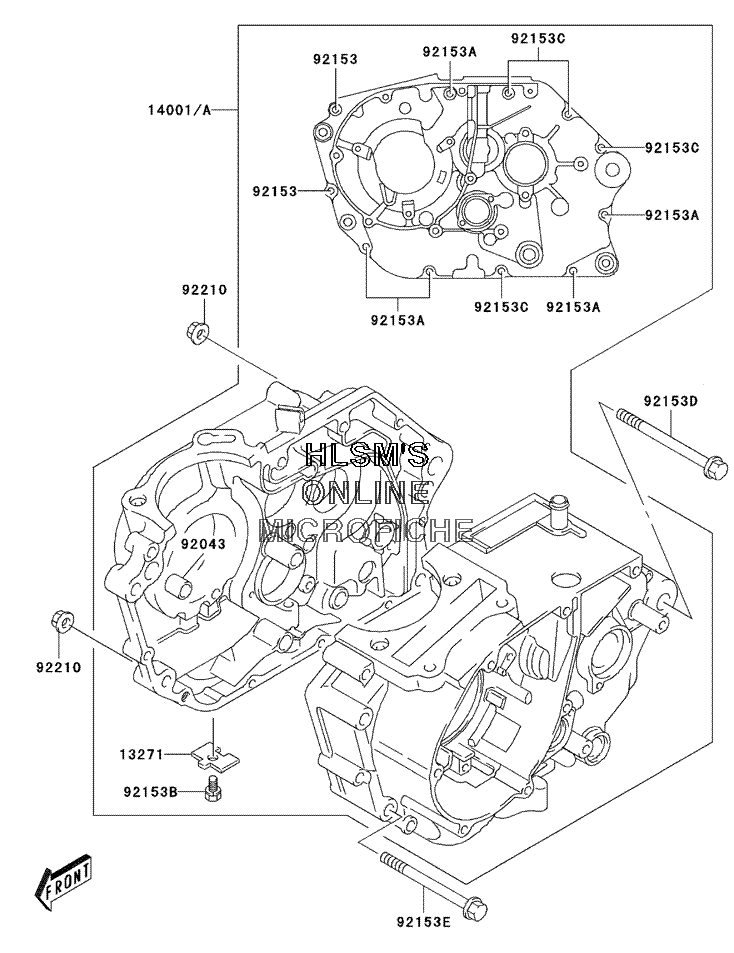

CRANKCASE для Kawasaki KLX 125L - 2005 года выпуска
-
№АртикулНазвание
-
1327113271-S017 PLATE, OIL GALLERY PLUGPLATE, OIL GALLERY PLUG
-
14001A14001-S005 SET, CRANKCASESET, CRANKCASE
-
9204392043-S003 PINPIN
-
9215392153-S005 BOLTBOLT
-
92153A92153-S007 BOLTBOLT
-
92153B92153-S125 BOLTBOLT
-
92153C92153-S129 BOLTBOLT
-
92153D92153-S174 BOLT, L=88BOLT, L=88
-
92153E92153-S175 BOLT, L=80BOLT, L=80
-
9221092210-S094 NUTNUT
