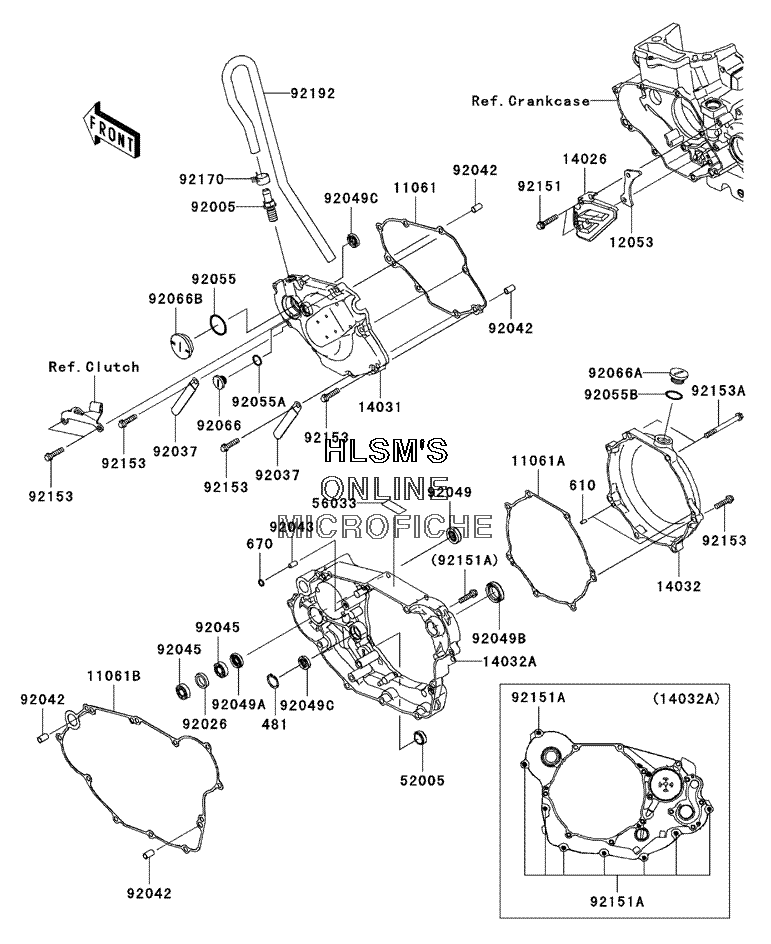

ENGINE COVER для Kawasaki KX 450F - 2006 года выпуска
-
№АртикулНазвание
-
481481J2000 CIRCLIP, TYPE, C, 20MMCIRCLIP, TYPE, C, 20MM
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
670670D1506 O-RING, 6MMO-RING, 6MM
-
1106111061-0084 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061A11061-0145 GASKET, CLUTCH COVER, OUTERGASKET, CLUTCH COVER, OUTER
-
11061B11061-0224 GASKET, CLUTCH COVER, INNERGASKET, CLUTCH COVER, INNER
-
1205312053-0056 GUIDE, CHAINGUIDE, CHAIN
-
1402614026-0008 COVER, CHAINCOVER, CHAIN
-
1403114031-0021 COVER, GENERATORCOVER, GENERATOR
-
1403214032-0054 COVER, CLUTCH, OUTERCOVER, CLUTCH, OUTER
-
14032A14032-0062 COVER, CLUTCH, INNERCOVER, CLUTCH, INNER
-
5200552005-0019 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5603356033-0121 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9200592005-0014 FITTING, BREATHERFITTING, BREATHER
-
9202692026-0064 SPACER, 16X22X4.3SPACER, 16X22X4.3
-
9203792037-1993 CLAMPCLAMP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1262 PIN, 4.2X6X12PIN, 4.2X6X12
-
9204592045-0039 BEARING, BALL, 6900C3BEARING, BALL, 6900C3
-
9204992049-0040 SEAL, OILSEAL, OIL
-
92049A92049-0041 SEAL, OILSEAL, OIL
-
92049B92049-1541 SEAL, OILSEAL, OIL
-
92049C92049-1542 SEAL, OILSEAL, OIL
-
9205592055-091 O-RINGO-RING
-
92055A92055-1011 O-RING, 13.0X1.9O-RING, 13.0X1.9
-
92055B92055-1146 O-RING, 20X2O-RING, 20X2
-
9206692066-0039 PLUG, 12X9.1PLUG, 12X9.1
-
92066A92066-0060 PLUG, OILPLUG, OIL
-
92066B92066-1404 PLUGPLUG
-
9215192151-1134 BOLT, 6X30BOLT, 6X30
-
92151A92151-1930 BOLT, FLANGED, SMALL, 6X25BOLT, FLANGED, SMALL, 6X25
-
9215392153-0604 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92153A92153-0722 BOLT, FLANGED, 6X65BOLT, FLANGED, 6X65
-
9217092170-1938 CLAMPCLAMP
-
9219292192-0218 TUBE, BREATHER, L=491.4TUBE, BREATHER, L=491.4
