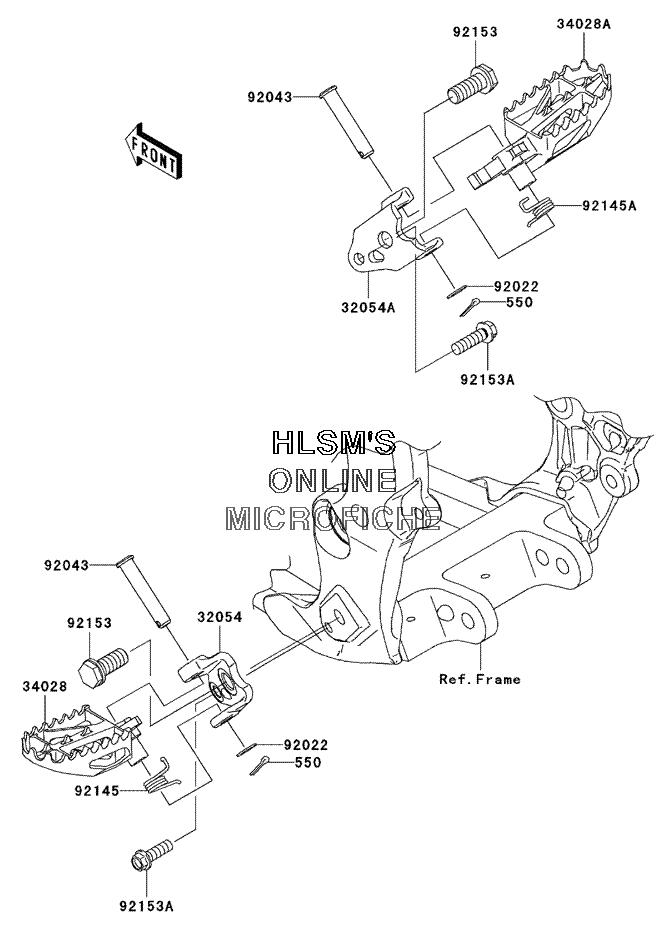

FOOTRESTS для Kawasaki KX 450F - 2006 года выпуска
-
№АртикулНазвание
-
550550S3020 PIN, COTTER, 3.0X20PIN, COTTER, 3.0X20
-
3205432054-0018 BRACKET, STEP (LEFT)BRACKET, STEP (LEFT)
-
32054A32054-0019 BRACKET, STEP (RIGHT)BRACKET, STEP (RIGHT)
-
3402834028-0026 STEP (LEFT)STEP (LEFT)
-
34028A34028-0027 STEP (RIGHT)STEP (RIGHT)
-
9202292022-1829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
9204392043-0090 PIN, 10X53PIN, 10X53
-
9214592145-0307 SPRING, STEP (LEFT)SPRING, STEP (LEFT)
-
92145A92145-0308 SPRING, STEP (RIGHT)SPRING, STEP (RIGHT)
-
9215392153-0653 BOLT, FLANGED, 12X23BOLT, FLANGED, 12X23
-
92153A92153-0838 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
