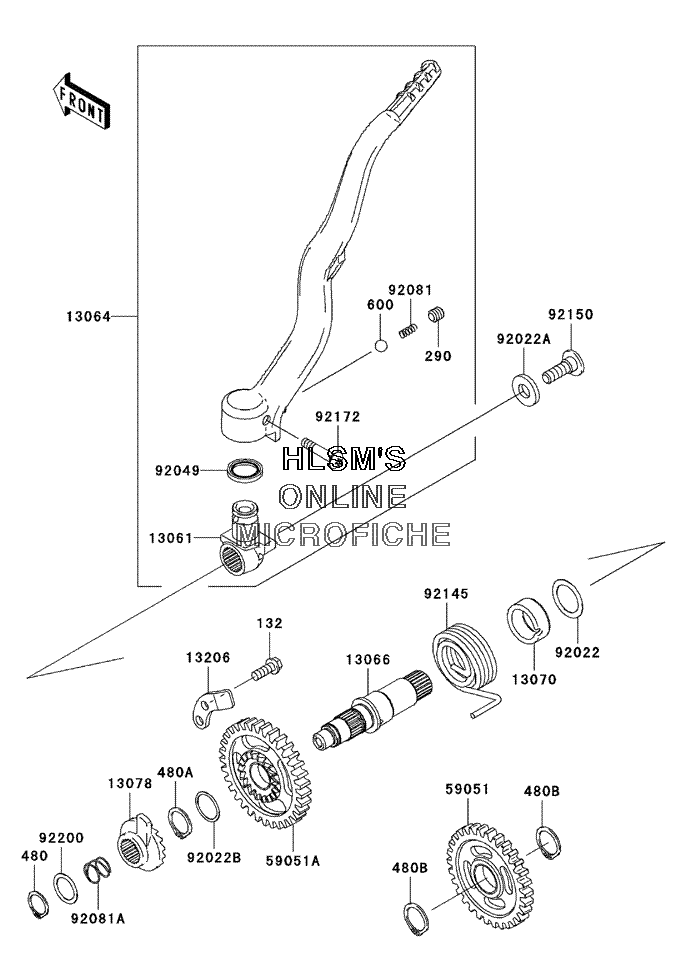

KICKSTARTER MECHANISM для Kawasaki KX 450F - 2006 года выпуска
-
№АртикулНазвание
-
132132G0616 BOLT, FLANGED, SMALL, 6X16BOLT, FLANGED, SMALL, 6X16
-
290290P0808 SCREW, SET, SOCKET, 8X8SCREW, SET, SOCKET, 8X8
-
480480J1600 CIRCLIP, TYPE, C, 16MMCIRCLIP, TYPE, C, 16MM
-
480A480J1800 CIRCLIP, TYPE, C, 18MMCIRCLIP, TYPE, C, 18MM
-
480B480J1900 CIRCLIP, TYPE, C, 19MMCIRCLIP, TYPE, C, 19MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
1306113061-0146 BOSSBOSS
-
1306413064-0031 LEVER, ASSY., KICKLEVER, ASSY., KICK
-
1306613066-1107 SHAFT, KICKSHAFT, KICK
-
1307013070-1378 GUIDE, KICK SPRINGGUIDE, KICK SPRING
-
1307813078-0008 RATCHETRATCHET
-
1320613206-0005 GUIDE, KICKGUIDE, KICK
-
5905159051-0030 GEAR, SPUR, 30TGEAR, SPUR, 30T
-
59051A59051-0046 GEAR, SPUR, 33TGEAR, SPUR, 33T
-
9202292022-1885 WASHER, 20.3X28.0X0.5WASHER, 20.3X28.0X0.5
-
92022A92022-1944 WASHERWASHER
-
92022B92022-271 WASHER, 18.3X22X0.5WASHER, 18.3X22X0.5
-
9204992049-1387 SEAL, OIL, KICK PEDALSEAL, OIL, KICK PEDAL
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-122 SPRING, RATCHETSPRING, RATCHET
-
9214592145-0297 SPRING, RETURNSPRING, RETURN
-
9215092150-1858 BOLT, 8X25BOLT, 8X25
-
9217292172-1088 SCREW, 6X30SCREW, 6X30
-
9220092200-1209 WASHER, KICKSHAFTWASHER, KICKSHAFT
