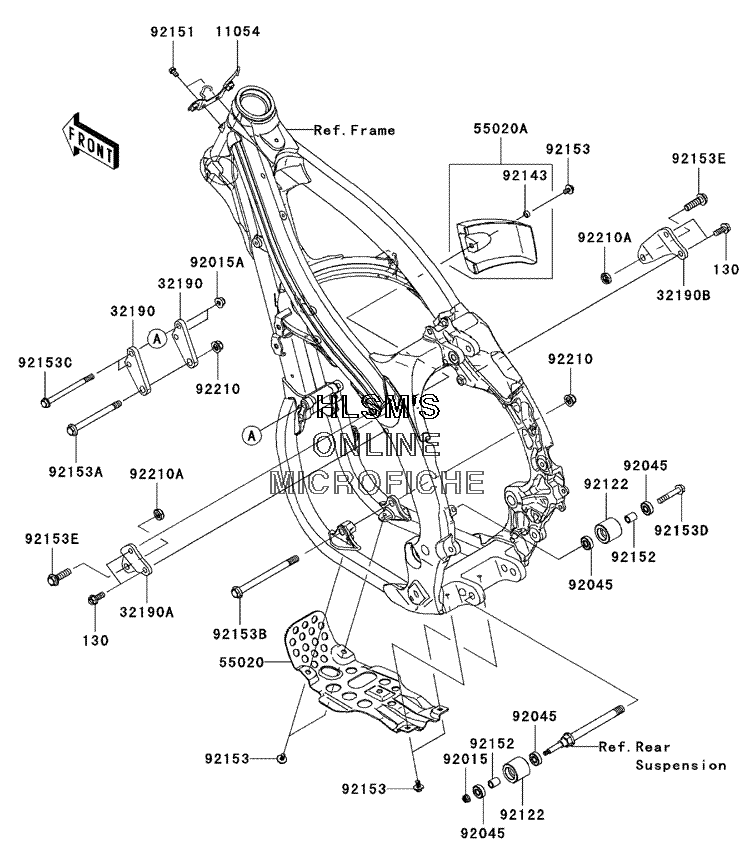

FRAME FITTING(S) для Kawasaki KX 450F - 2006 года выпуска
-
№АртикулНазвание
-
130130P0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
1105411054-0300 BRACKET, IGNITERBRACKET, IGNITER
-
3219032190-0232 BRACKET, ENGINE, FRONTBRACKET, ENGINE, FRONT
-
32190A32190-0244 BRACKET, ENGINE, UPPER (LEFT)BRACKET, ENGINE, UPPER (LEFT)
-
32190B32190-0245 BRACKET, ENGINE, UPPER (RIGHT)BRACKET, ENGINE, UPPER (RIGHT)
-
5502055020-0177 GUARD, SKIDGUARD, SKID
-
55020A55020-0179-RZ GUARD, ENGINE (RIGHT) (WHITE)GUARD, ENGINE (RIGHT) (WHITE)
-
9201592015-1339 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015A92015-1432 NUT, 8MMNUT, 8MM
-
9204592045-1009 BEARING, BALL, 608LLU/2ABEARING, BALL, 608LLU/2A
-
9212292122-0007 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9214392143-1307 COLLARCOLLAR
-
9215192151-1233 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
9215292152-0211 COLLAR, 8.5X12.5X15.5COLLAR, 8.5X12.5X15.5
-
9215392153-0503 BOLT, 6X12BOLT, 6X12
-
92153A92153-0659 BOLT, FLANGED, 10X102BOLT, FLANGED, 10X102
-
92153B92153-0704 BOLT, FLANGED, 10X137BOLT, FLANGED, 10X137
-
92153C92153-0705 BOLT, FLANGED, 8X100BOLT, FLANGED, 8X100
-
92153D92153-0751 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
-
92153E92153-0802 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1184 NUT, LOCK, 10MMNUT, LOCK, 10MM
