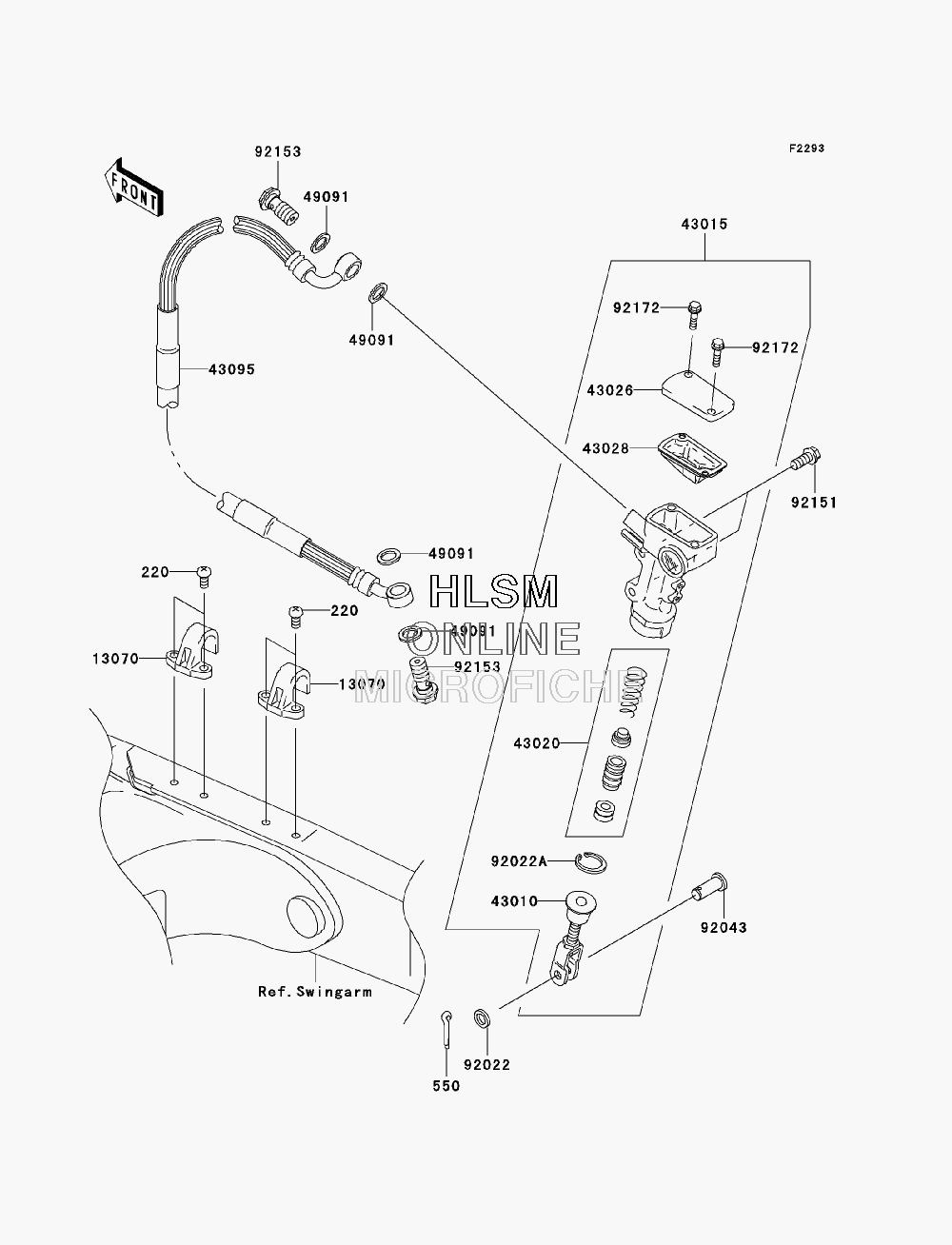

BRAKE - MASTER CYLINDER - REAR для Kawasaki KX250 (KX250R7F) - 2007 года выпуска
-
№АртикулНазвание
-
220220B0510 SCREW-PAN-CROS,5X10SCREW-PAN-CROS,5X10
-
550550D2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
1307013070-0048 GUIDE,BRAKE HOSEGUIDE,BRAKE HOSE
-
4301043010-1087 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0004 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1086 CAP-BRAKECAP-BRAKE
-
4302843028-1092 DIAPHRAGMDIAPHRAGM
-
4309543095-0047 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9202292022-1028 WASHER,8.5X13X1WASHER,8.5X13X1
-
92022A92022-1601 WASHER,CIRCRIPWASHER,CIRCRIP
-
9204392043-0004 PINPIN
-
9215192151-1423 BOLT,6X14BOLT,6X14
-
9215392153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
-
9217292172-1064 SCREWSCREW
