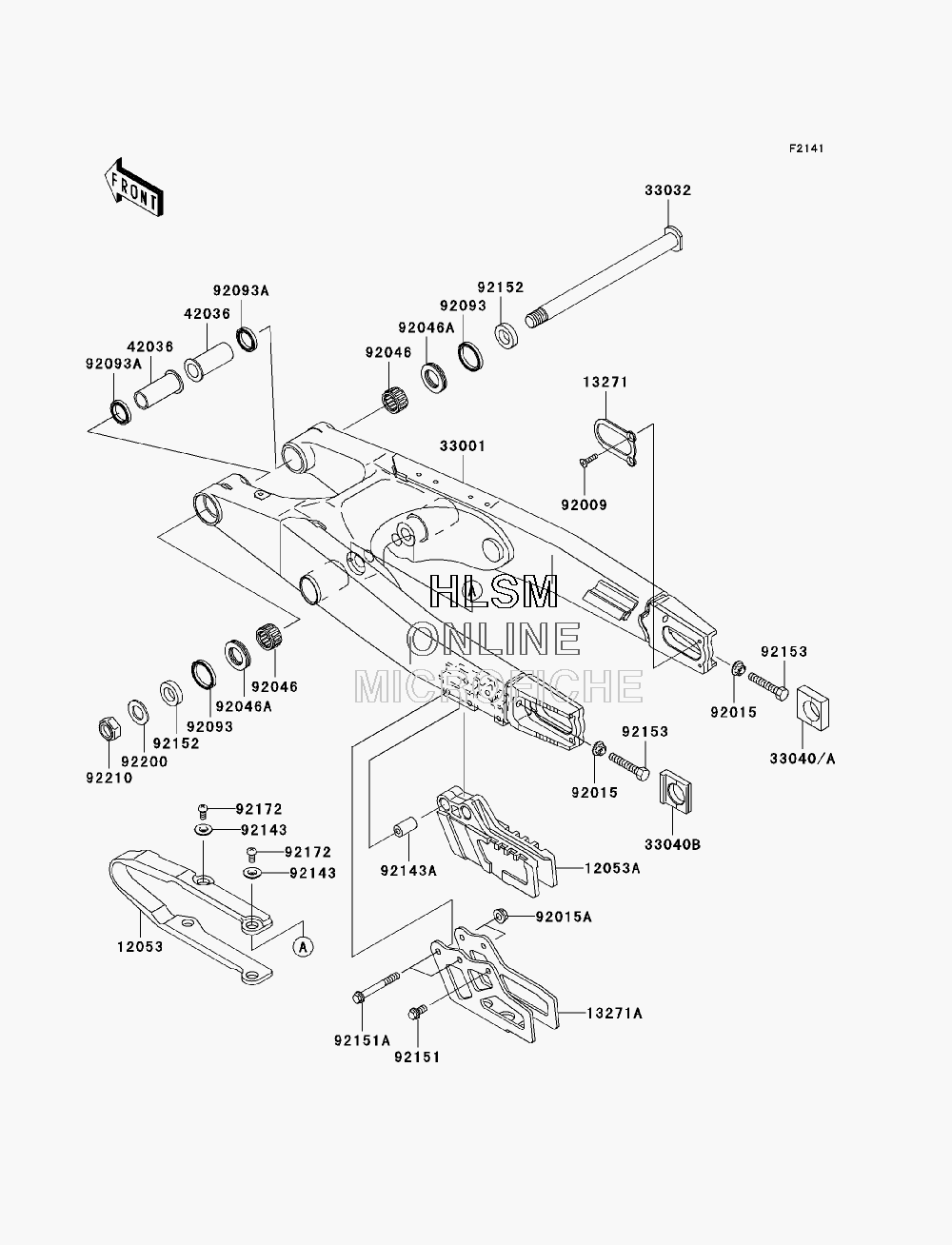

SUSPENSION - SWINGARM для Kawasaki KX250 (KX250R7F) - 2007 года выпуска
-
№АртикулНазвание
-
1205312053-0020 GUIDE-CHAIN,DRIVE, FRONTGUIDE-CHAIN,DRIVE, FRONT
-
12053A12053-1468 GUIDE-CHAINGUIDE-CHAIN
-
1327113271-1833 PLATE,AXLEPLATE,AXLE
-
13271A13271-1834 PLATE,CHAIN GUIDEPLATE,CHAIN GUIDE
-
3300133001-0065-458 ARM-COMP-SWING,P.SILVERARM-COMP-SWING,P.SILVER
-
3303233032-1189 SHAFT-SWING ARMSHAFT-SWING ARM
-
33040A33040-0020 ADJUSTER-CHAIN, RIGHT HANDADJUSTER-CHAIN, RIGHT HAND
-
33040B33040-1189 ADJUSTER-CHAIN, LEFT HANDADJUSTER-CHAIN, LEFT HAND
-
4203642036-1326 SLEEVE,SWING ARM,L=54SLEEVE,SWING ARM,L=54
-
9200992009-1828 SCREW,5X10SCREW,5X10
-
9201592015-1014 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
92015A92015-1078 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9204692046-1174 BEARING-NEEDLE,TA2230ZBEARING-NEEDLE,TA2230Z
-
92046A92046-1240 BEARING-NEEDLE,NTBR22356E01BEARING-NEEDLE,NTBR22356E01
-
9209392093-1434 SEAL,SDO29X35X4.5SEAL,SDO29X35X4.5
-
92093A92093-1435 SEAL,SDO22X29X5SEAL,SDO22X29X5
-
9214392143-1676 COLLARCOLLAR
-
92143A92143-1867 COLLAR,6.5X14X24COLLAR,6.5X14X24
-
9215192151-1133 BOLT,6X12BOLT,6X12
-
92151A92151-1234 BOLT,6X50BOLT,6X50
-
9215292152-1137 COLLAR,17.1X29X7.5COLLAR,17.1X29X7.5
-
9215392153-0620 BOLT,8X56BOLT,8X56
-
9217292172-0119 SCREW,5X8SCREW,5X8
-
9220092200-0202 WASHER,17.2X30X2.3WASHER,17.2X30X2.3
-
9221092210-0179 NUT,LOCK,16MMNUT,LOCK,16MM
