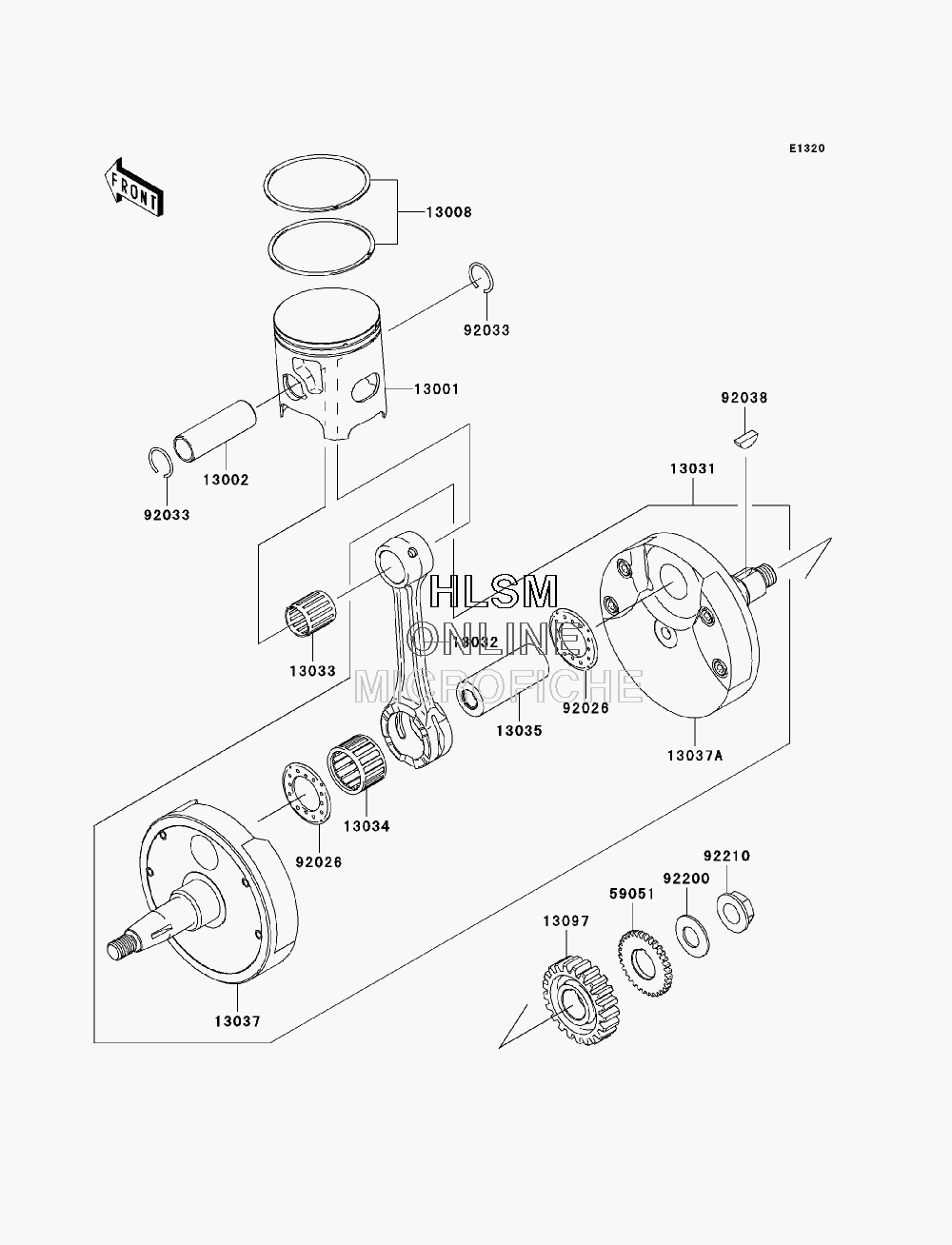

CRANKSHAFT - PISTON(S) для Kawasaki KX250 (KX250R7F) - 2007 года выпуска
-
№АртикулНазвание
-
1300113001-0058 PISTON-ENGINE,SIZE BPISTON-ENGINE,SIZE B
-
1300213002-1098 PIN-PISTONPIN-PISTON
-
1300813008-0013 RING-SET-PISTONRING-SET-PISTON
-
1303113031-0050 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1303213032-1279 ROD-CONNECTING,WHITEROD-CONNECTING,WHITE
-
1303313033-1010 BEARING-NEEDLE,KBK18X22X23.8XBEARING-NEEDLE,KBK18X22X23.8X
-
1303413034-0005 BEARING-BIG END,B4BEARING-BIG END,B4
-
1303513035-1089 PIN-CRANKPIN-CRANK
-
1303713037-0032 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
13037A13037-0062 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
1309713097-0039 GEAR-PRIMARY SPUR,21TGEAR-PRIMARY SPUR,21T
-
5905159051-0050 GEAR-SPUR,32TGEAR-SPUR,32T
-
9202692026-1607 SPACER,24X42X1.6SPACER,24X42X1.6
-
9203392033-1336 RING-SNAP,PISTON PINRING-SNAP,PISTON PIN
-
9203892038-0001 KEY,WOODRUFFKEY,WOODRUFF
-
9220092200-0217 WASHER,14.2X28X1.5WASHER,14.2X28X1.5
-
9221092210-0216 NUT,14MM, LEFT HANDEDNUT,14MM, LEFT HANDED
