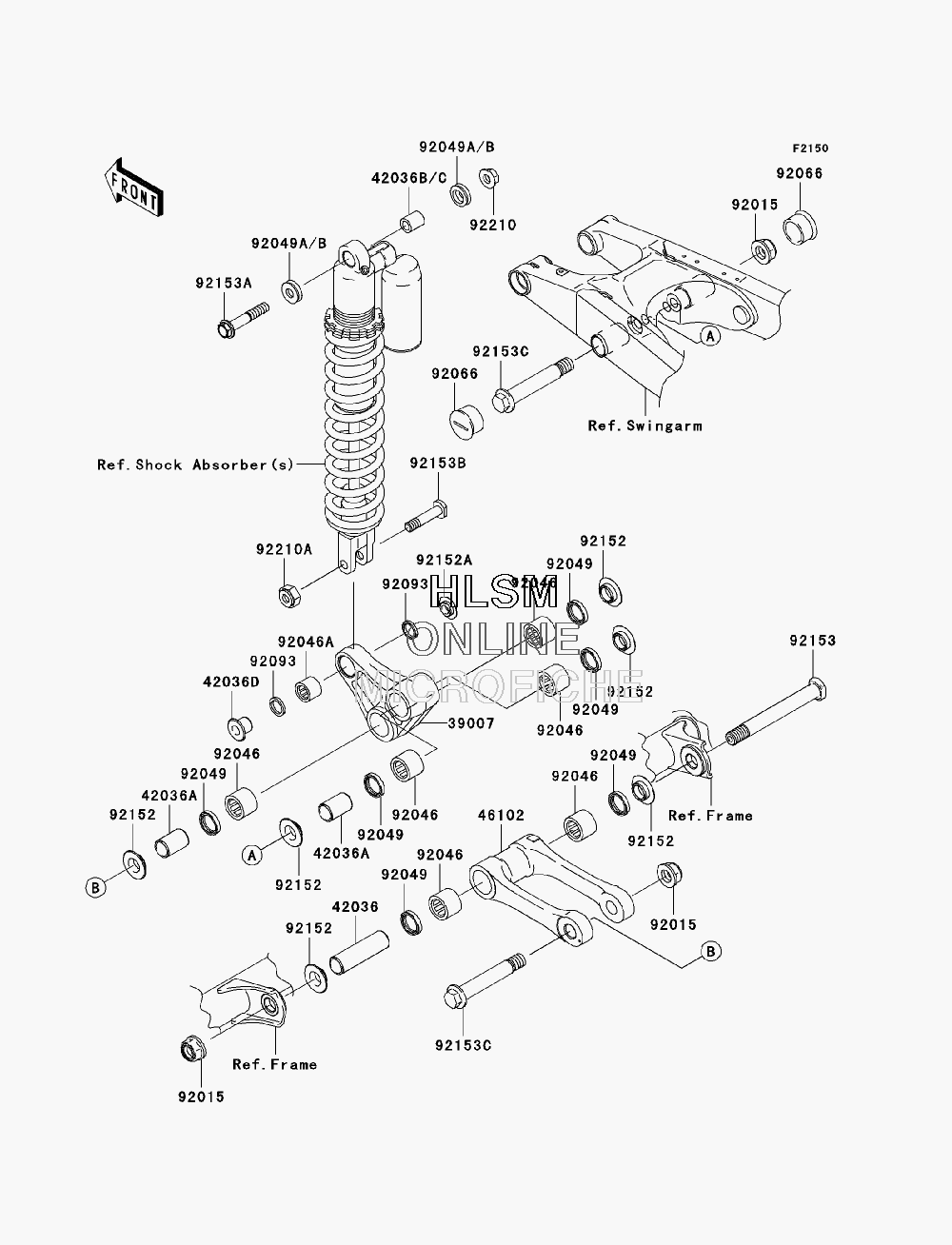

SUSPENSION - REAR для Kawasaki KX250 (KX250R7F) - 2007 года выпуска
-
№АртикулНазвание
-
3900739007-0016 ARM-SUSP,UNI TRAKARM-SUSP,UNI TRAK
-
4203642036-0014 SLEEVE,15X20X80SLEEVE,15X20X80
-
42036A42036-0015 SLEEVE,15X20X41.8SLEEVE,15X20X41.8
-
42036B42036-0030 SLEEVE,10X16X19.3SLEEVE,10X16X19.3
-
42036D42036-1351 SLEEVESLEEVE
-
4610246102-0060 ROD,SUSPENSIONROD,SUSPENSION
-
9201592015-1401 NUT,FLANGED,14MMNUT,FLANGED,14MM
-
9204692046-1151 BEARING-NEEDLE,F-2016BEARING-NEEDLE,F-2016
-
92046A92046-1301 BEARING-NEEDLE,7E-HVS16X22X12BEARING-NEEDLE,7E-HVS16X22X12
-
9204992049-0027 SEAL-OIL,HF020N3-ASEAL-OIL,HF020N3-A
-
92049A92049-0069 SEAL-OILSEAL-OIL
-
9206692066-0026-6Z PLUG,SWING ARM,F.BLACKPLUG,SWING ARM,F.BLACK
-
9209392093-1436 SEALSEAL
-
9215292152-0108 COLLARCOLLAR
-
92152A92152-1139 COLLARCOLLAR
-
9215392153-0407 BOLT,14MM,L=116BOLT,14MM,L=116
-
92153A92153-0828 BOLT,FLANGED,10X56BOLT,FLANGED,10X56
-
92153B92153-0937 BOLT,10X45BOLT,10X45
-
92153C92153-1458 BOLT,14MM,L=92BOLT,14MM,L=92
-
9221092210-1080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-1184 NUT,LOCK,10MMNUT,LOCK,10MM
