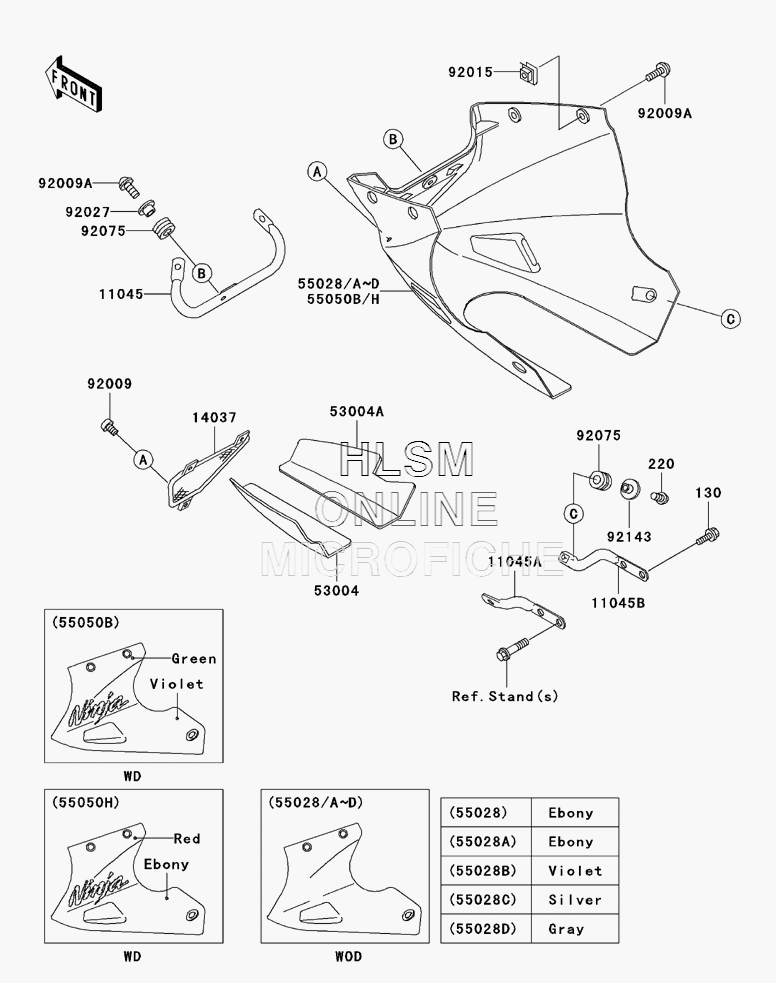

COWLING - LOWERS для Kawasaki NINJA 250R - 2001 года выпуска
-
№АртикулНазвание
-
1104511045-1861 BRACKET, LOWER COWLING, FRONTBRACKET, LOWER COWLING, FRONT
-
11045A11045-1864 BRACKET, LOWER COWLING, REAR (LEFT)BRACKET, LOWER COWLING, REAR (LEFT)
-
11045B11045-1865 BRACKET, LOWER COWLING, REAR (RIGHT)BRACKET, LOWER COWLING, REAR (RIGHT)
-
1403714037-1094 SCREENSCREEN
-
5300453004-1053 MAT, LOWER COWLING (LEFT)MAT, LOWER COWLING (LEFT)
-
53004A53004-1054 MAT, LOWER COWLING (RIGHT)MAT, LOWER COWLING (RIGHT)
-
5502855028-1178-H8 COWLING, LOWER (EBONY)COWLING, LOWER (EBONY)
-
55028B55028-1178-JW COWLING, LOWER (VIOLET)COWLING, LOWER (VIOLET)
-
130130J0614 BOLT, FLANGED, 6X14 (BLACK)BOLT, FLANGED, 6X14 (BLACK)
-
220220F0620 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
9200992009-1654 SCREW, 5X16 (BLACK)SCREW, 5X16 (BLACK)
-
92009A92009-1663 SCREW, 6X18SCREW, 6X18
-
9201592015-1602 NUT, 6MMNUT, 6MM
-
9202792027-1935 COLLAR, L=9.1 (BLACK)COLLAR, L=9.1 (BLACK)
-
9207592075-1634 DAMPERDAMPER
-
9214392143-1226 COLLAR (BLACK)COLLAR (BLACK)
