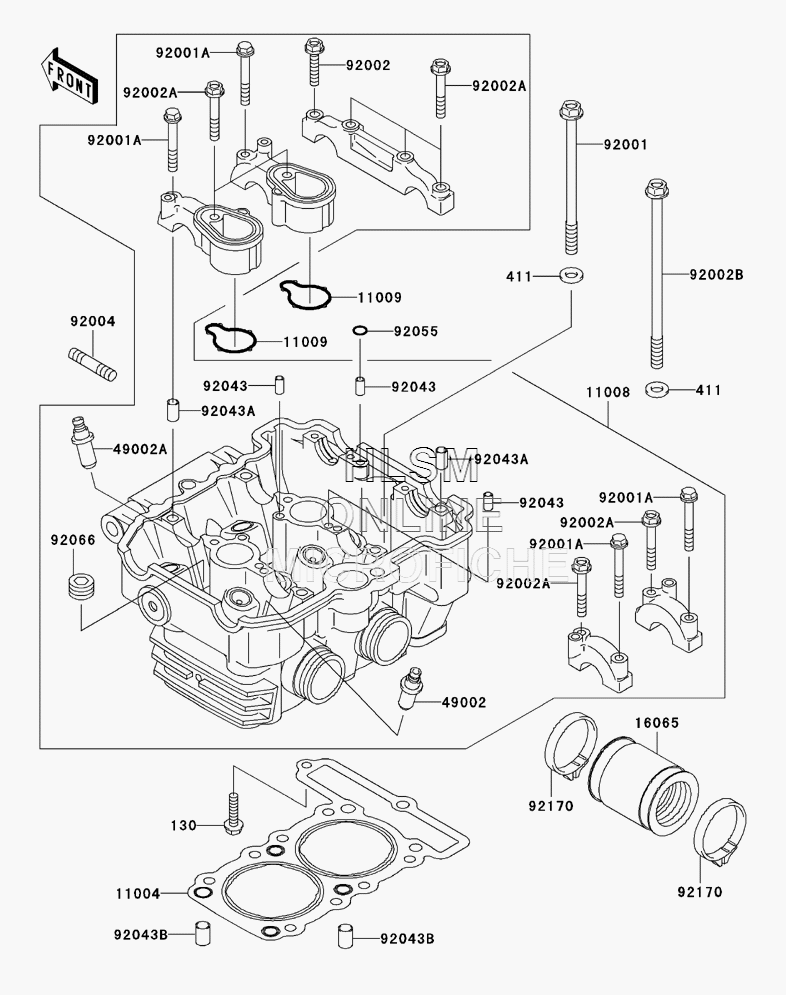

CYLINDER HEAD для Kawasaki NINJA 250R - 2001 года выпуска
-
№АртикулНазвание
-
130130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
411411B0800 WASHER, PLAIN, 8MMWASHER, PLAIN, 8MM
-
1100411004-1312 GASKET, HEADGASKET, HEAD
-
1100811008-1201 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1100911009-1573 GASKET, CAMSHAFT BRACKETGASKET, CAMSHAFT BRACKET
-
1606516065-1156 HOLDER, CARBURETORHOLDER, CARBURETOR
-
4900249002-1070 GUIDE, VALVE, INTAKEGUIDE, VALVE, INTAKE
-
49002A49002-1071 GUIDE, VALVE, EXHAUSTGUIDE, VALVE, EXHAUST
-
9200192001-1481 BOLT, 8X115BOLT, 8X115
-
92001A92001-1872 BOLT, 6X46BOLT, 6X46
-
9200292002-1755 BOLT, 6X30BOLT, 6X30
-
92002A92002-1756 BOLT, 6X40BOLT, 6X40
-
92002B92002-1832 BOLT, 8X146BOLT, 8X146
-
9200492004-066 STUD, 6X27STUD, 6X27
-
9204392043-1262 PIN, 4.2X6X12PIN, 4.2X6X12
-
92043A92043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043B92043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-1339 O-RING, 5.5X1.5O-RING, 5.5X1.5
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
9217092170-1438 CLAMPCLAMP
