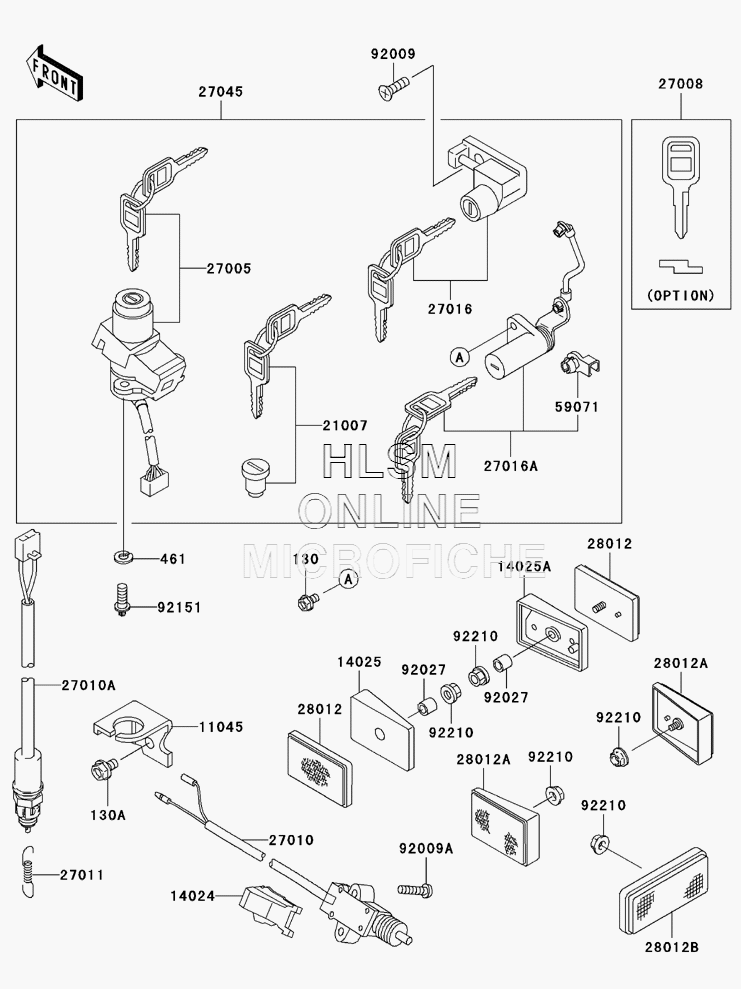

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA 250R - 2001 года выпуска
-
№АртикулНазвание
-
130130B0510 BOLT, FLANGEDBOLT, FLANGED
-
130A130H0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
461461L0600 WASHER, SPRINGWASHER, SPRING
-
1104511045-1641 BRACKET, REAR BRAKE SWITCHBRACKET, REAR BRAKE SWITCH
-
1402414024-1532 COVER, SIDE STAND SWITCHCOVER, SIDE STAND SWITCH
-
1402514025-1886 COVER, REFLECTOR, FRONTCOVER, REFLECTOR, FRONT
-
14025A14025-1887 COVER, REFLECTOR, FRONTCOVER, REFLECTOR, FRONT
-
2100721007-5037 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-5105 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1173 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1223 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701127011-004 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
2701627016-5211 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
27016A27016-5224 LOCK, ASSY, SEATLOCK, ASSY, SEAT
-
2704527045-5003 SWITCH, ASSYSWITCH, ASSY
-
2801228012-1052 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
28012A28012-1056 REFLECTOR, REFLEX, REARREFLECTOR, REFLEX, REAR
-
28012B28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
5907159071-1103 JOINTJOINT
-
9200992009-1401 SCREW, 5X12SCREW, 5X12
-
92009A92009-1492 SCREW, 5X22SCREW, 5X22
-
9202792027-1789 COLLAR, 5X8X14.5COLLAR, 5X8X14.5
-
9215192151-1911 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
