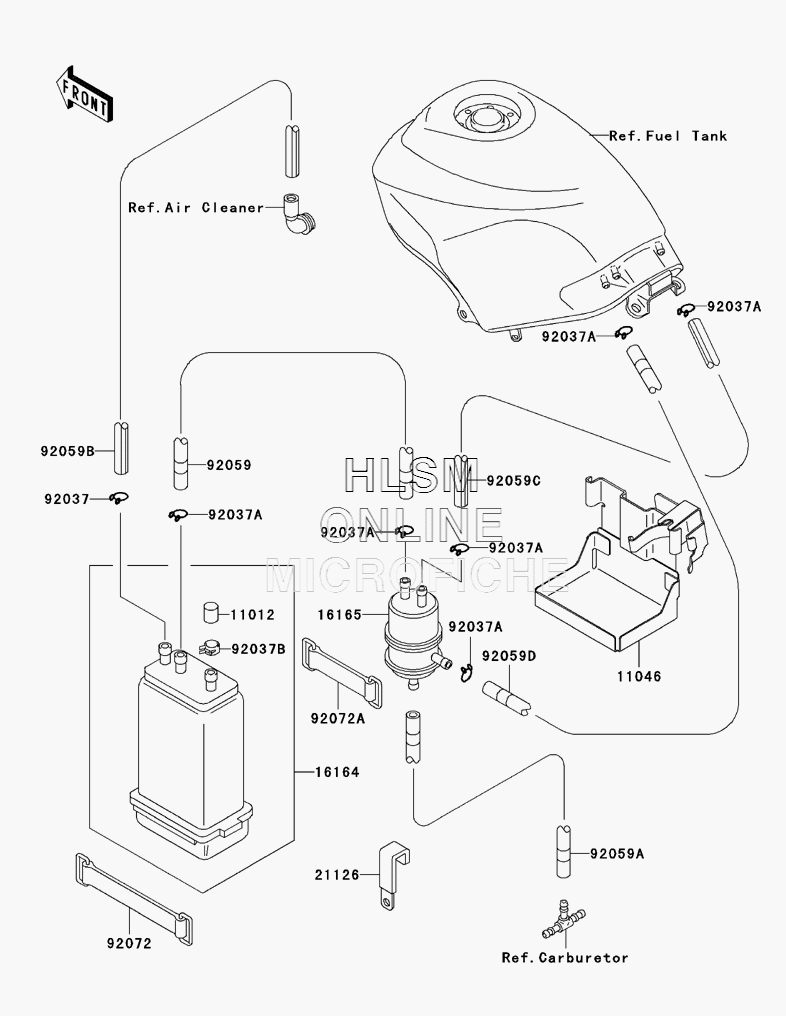

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA 250R - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1104611046-1238 BRACKET, CANISTERBRACKET, CANISTER
-
1616416164-1054 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
2112621126-008 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
9205992059-1496 TUBE, 5X10X170 (BLUE)TUBE, 5X10X170 (BLUE)
-
92059A92059-1568 TUBE, 4X9X420 (WHITE)TUBE, 4X9X420 (WHITE)
-
92059B92059-1806 TUBE, 7X12X830 (GREEN)TUBE, 7X12X830 (GREEN)
-
92059C92059-1808 TUBE, 5X10X610 (BLUE)TUBE, 5X10X610 (BLUE)
-
92059D92059-1952 TUBE, 5X10X640 (RED)TUBE, 5X10X640 (RED)
-
9207292072-1188 BAND, L=150BAND, L=150
-
92072A92072-1419 BAND, L=50BAND, L=50
