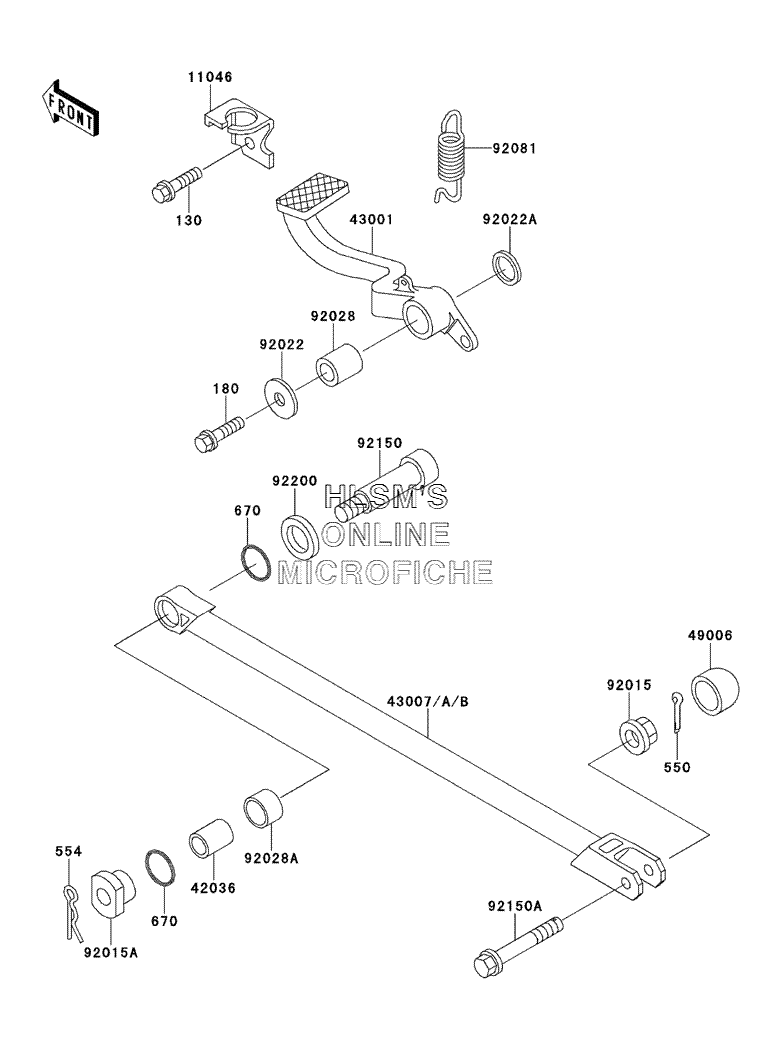

BRAKE PEDAL W/ TORQUE LINK для Kawasaki NINJA ZX-11 - 2001 года выпуска
-
№АртикулНазвание
-
130130H0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
180180H0614 BOLT, UPSET, WSBOLT, UPSET, WS
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
554554A0800 PIN, SNAP, 8MMPIN, SNAP, 8MM
-
670670B2016 O-RING, 16MMO-RING, 16MM
-
1104611046-1252 BRACKET, REAR BRAKE SWITCHBRACKET, REAR BRAKE SWITCH
-
4203642036-1242 SLEEVE, 10.1X16X20SLEEVE, 10.1X16X20
-
4300143001-1292 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
4300743007-1165-CQ ROD, TORQUE (P.C.GRAY)ROD, TORQUE (P.C.GRAY)
-
4900649006-1218 BOOTBOOT
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1747 NUT, 8MMNUT, 8MM
-
9202292022-1282 WASHER, 7X28X1.6WASHER, 7X28X1.6
-
92022A92022-326 WASHER, 15.3X24X1WASHER, 15.3X24X1
-
9202892028-1282 BUSHING, BRAKE PEDALBUSHING, BRAKE PEDAL
-
92028A92028-1468 BUSHINGBUSHING
-
9208192081-1833 SPRING, BRAKE PEDALSPRING, BRAKE PEDAL
-
9215092150-1167 BOLT, SOCKET, 8X61BOLT, SOCKET, 8X61
-
92150A92150-1539 BOLT, FLANGED, 8X47BOLT, FLANGED, 8X47
-
9220092200-1313 WASHER, 10MMWASHER, 10MM
