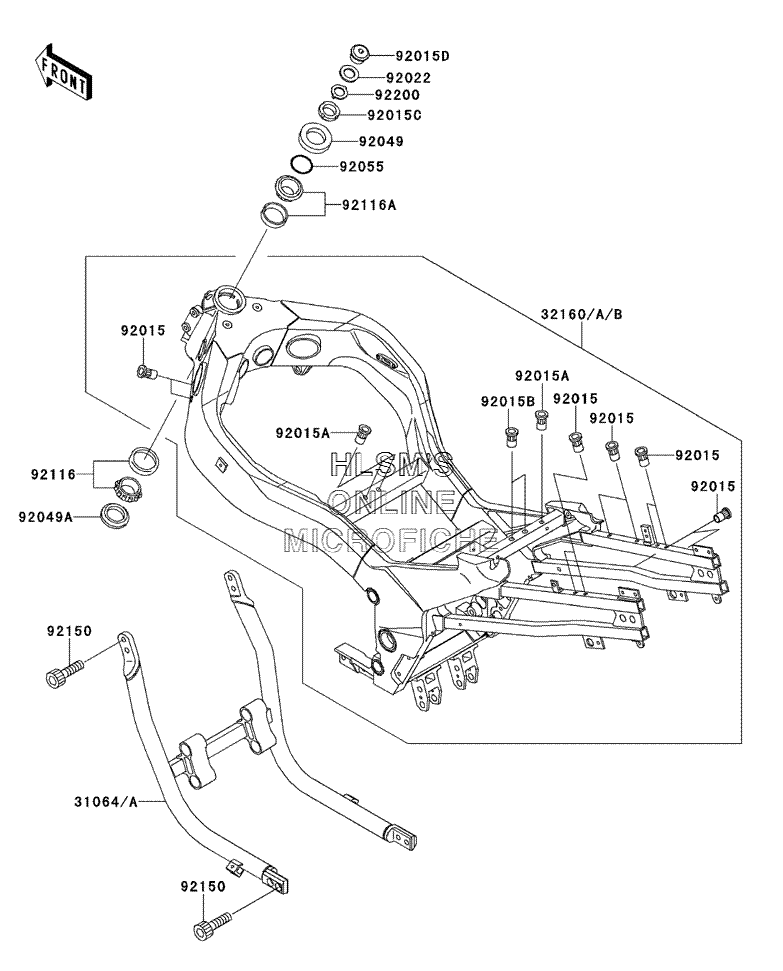

FRAME для Kawasaki NINJA ZX-11 - 2001 года выпуска
-
№АртикулНазвание
-
3106431064-1148-EZ PIPE, COMP, SIDE FRAME (C.GRAY)PIPE, COMP, SIDE FRAME (C.GRAY)
-
3216032160-1280-CQ FRAME, COMP (P.C.GRAY)FRAME, COMP (P.C.GRAY)
-
9201592015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015A92015-1792 NUT, POP, 6MM, L=16.5NUT, POP, 6MM, L=16.5
-
92015B92015-1794 NUT, POP, 8MM, L=18NUT, POP, 8MM, L=18
-
92015C92015-1848 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
-
92015D92015-1891 NUT, STEERING, 25MMNUT, STEERING, 25MM
-
9202292022-250 WASHER, 25X36X2.3WASHER, 25X36X2.3
-
9204992049-1382 SEAL, OIL, XMH 43 75 6.4JSEAL, OIL, XMH 43 75 6.4J
-
92049A92049-1383 SEAL, OIL, XMHE 43 55 4JSEAL, OIL, XMHE 43 55 4J
-
9205592055-1452 O-RING, 34.5X2.0O-RING, 34.5X2.0
-
9211692116-1072 BEARING, ROLLER, 32907JR, 2BEARING, ROLLER, 32907JR, 2
-
92116A92116-1074 BEARING, ROLLER, 32907JR, 3BEARING, ROLLER, 32907JR, 3
-
9215092150-1690 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
9220092200-1083 WASHER, CLAW, 25.5X40X2.3WASHER, CLAW, 25.5X40X2.3
