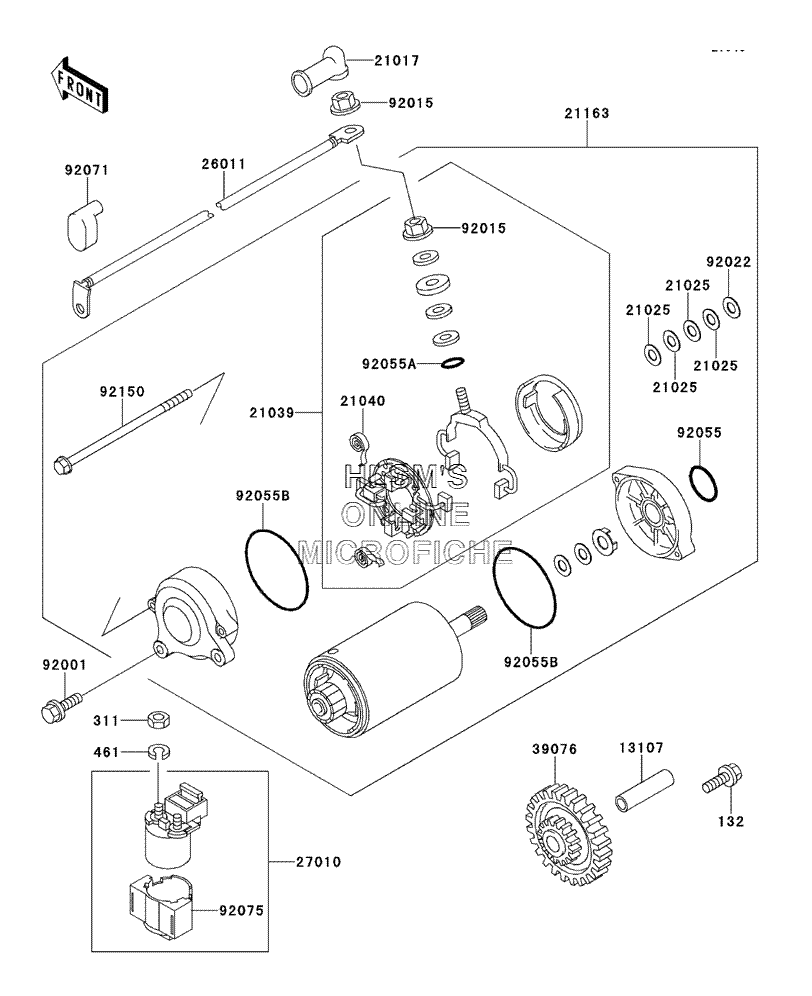

STARTER MOTOR для Kawasaki NINJA ZX-11 - 2001 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
311311B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
461461F0600 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
1310713107-1106 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1060 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1055 SPRING, BRUSHSPRING, BRUSH
-
2116321163-1212 STARTER, ELECTRICSTARTER, ELECTRIC
-
2601126011-1479 WIRE, LEAD, STARTER MOTORWIRE, LEAD, STARTER MOTOR
-
2701027010-1254 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-1061 LIMITER, STARTER IDLE GEARLIMITER, STARTER IDLE GEAR
-
9200192001-1947 BOLT, 6X20BOLT, 6X20
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
9205592055-1276 O-RINGO-RING
-
92055A92055-1370 O-RING, 4.5X2.0O-RING, 4.5X2.0
-
92055B92055-1381 O-RING, STARTER MOTORO-RING, STARTER MOTOR
-
9207192071-1130 GROMMET, TERMINALGROMMET, TERMINAL
-
9207592075-1863 DAMPER, MAGNETIC SWITCHDAMPER, MAGNETIC SWITCH
-
9215092150-1693 BOLTBOLT
