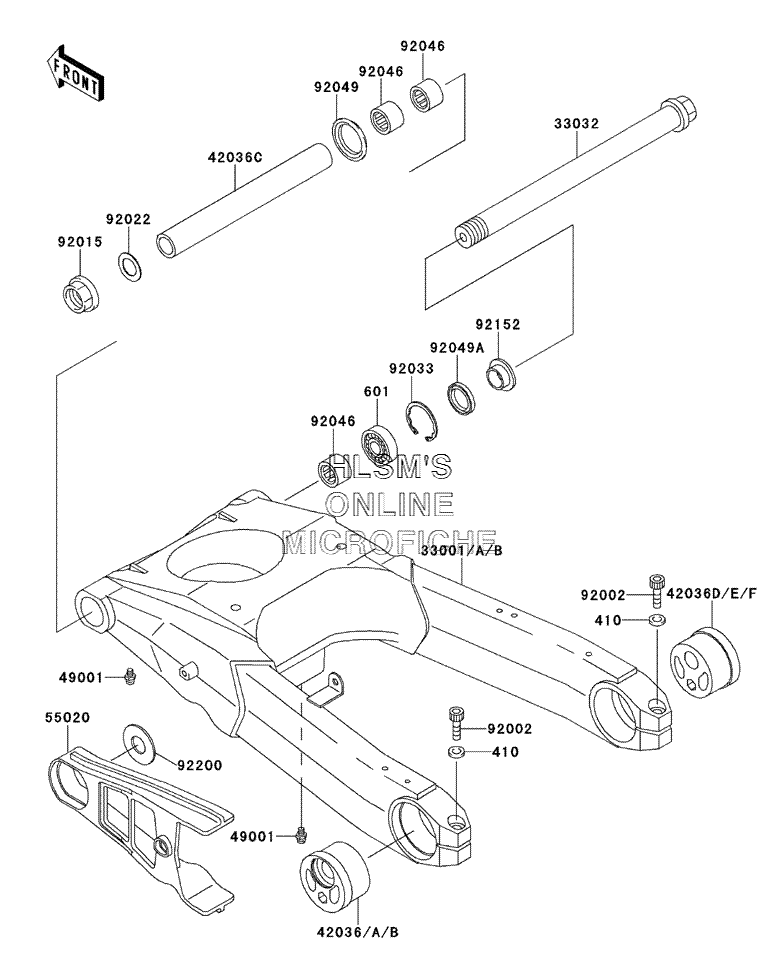

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-11 - 2001 года выпуска
-
№АртикулНазвание
-
410410E1000 W, PLAIN, SW, PLAIN, S
-
601601A6004 BEARING, BALL, #6004BEARING, BALL, #6004
-
3300133001-1483-CQ ARM, COMP, SWING (P.C.GRAY)ARM, COMP, SWING (P.C.GRAY)
-
3303233032-1170 SHAFT, SWING ARMSHAFT, SWING ARM
-
4203642036-1153-CQ SLEEVE, REAR AXLE (LEFT) (P.C.GRAY)SLEEVE, REAR AXLE (LEFT) (P.C.GRAY)
-
42036C42036-1264 SLEEVE, SWING ARM, L=237SLEEVE, SWING ARM, L=237
-
42036D42036-1265-CQ SLEEVE, REAR AXLE (RIGHT) (P.C.GRAY)SLEEVE, REAR AXLE (RIGHT) (P.C.GRAY)
-
4900149001-1051 NIPPLE, GREASENIPPLE, GREASE
-
5502055020-1528 GUARD, CHAINGUARD, CHAIN
-
9200292002-1452 BOLT, SOCKET, 10X40BOLT, SOCKET, 10X40
-
9201592015-1724 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
9202292022-1280 WASHER, THRUST, 20.5MMWASHER, THRUST, 20.5MM
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204692046-1111 BEARING, NEEDLE, BM2817BEARING, NEEDLE, BM2817
-
9204992049-1181 SEAL, OILSEAL, OIL
-
92049A92049-1314 SEAL, OIL, MHSA25 42 6SEAL, OIL, MHSA25 42 6
-
9215292152-1234 COLLAR, SWING ARM, L=12.5COLLAR, SWING ARM, L=12.5
-
9220092200-1167 WASHER, 20.3X48X2.3WASHER, 20.3X48X2.3
