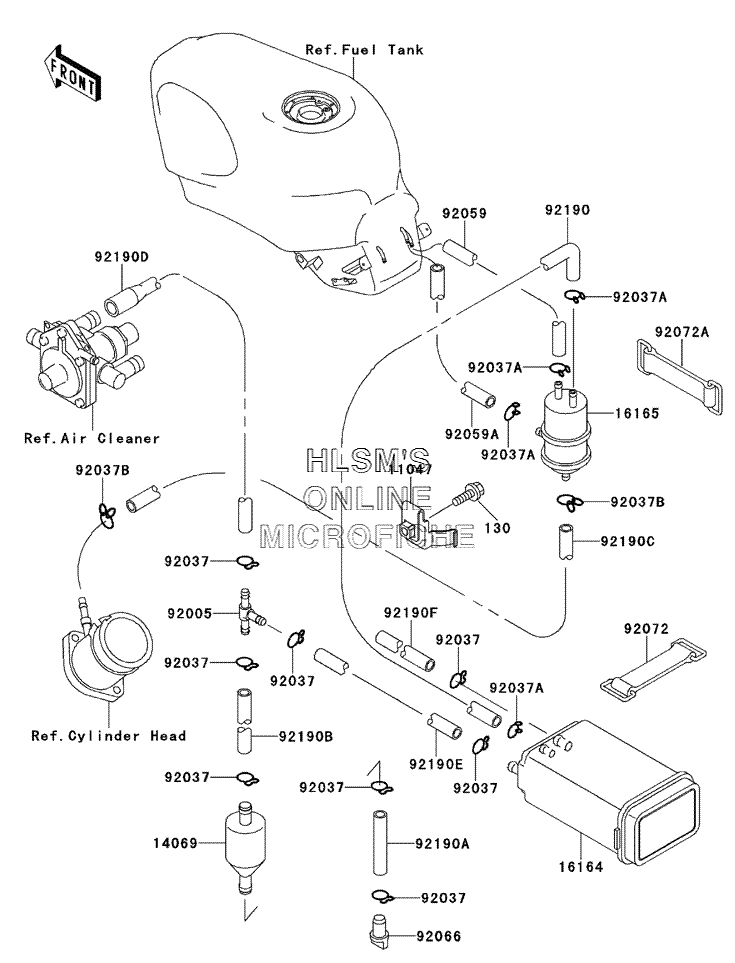

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA ZX-6 - 2001 года выпуска
-
№АртикулНазвание
-
1104711047-1990 BRACKET, CANISTERBRACKET, CANISTER
-
1406914069-1051 BREATHERBREATHER
-
1616416164-1052 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9200592005-1119 FITTING, T, TYPEFITTING, T, TYPE
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1712 CLAMPCLAMP
-
9205992059-1496 TUBE, 5X10X170 (BLUE)TUBE, 5X10X170 (BLUE)
-
92059A92059-1497 TUBE, 5X10X230 (RED)TUBE, 5X10X230 (RED)
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207292072-006 BAND, L=142.1BAND, L=142.1
-
92072A92072-066 BAND, L=50BAND, L=50
-
9219092190-1099 TUBE, 5X10X690 (BLUE)TUBE, 5X10X690 (BLUE)
-
92190A92190-1200 TUBE, 7X12X45TUBE, 7X12X45
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
92190B92190-1201 TUBE, 7X12X160TUBE, 7X12X160
-
92190C92190-1440 TUBE, 4X9X651 (WHITE)TUBE, 4X9X651 (WHITE)
-
92190D92190-1441 TUBE, L=569 (YELLOW)TUBE, L=569 (YELLOW)
-
92190E92190-1442 TUBE, 7X12X700 (YELLOW)TUBE, 7X12X700 (YELLOW)
-
92190F92190-1443 TUBE, 7X12X1250 (GREEN)TUBE, 7X12X1250 (GREEN)
