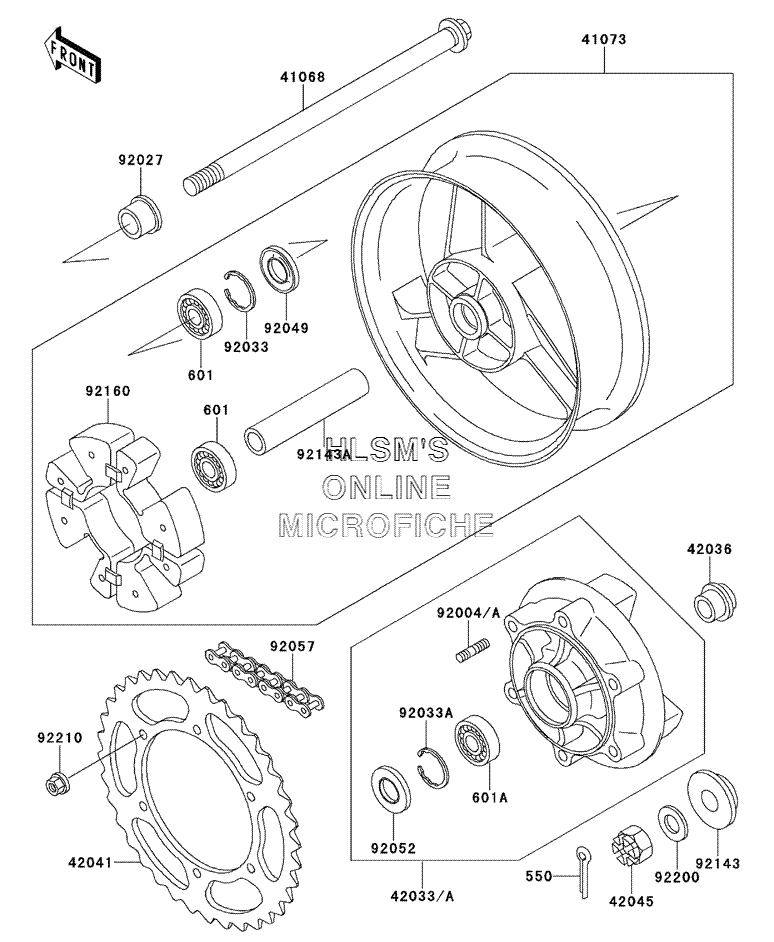

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-6 - 2001 года выпуска
-
№АртикулНазвание
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6204UU BEARING, BALL, 6204UUC3BEARING, BALL, 6204UUC3
-
601A601B6205G BEARING, BALL, #6205GBEARING, BALL, #6205G
-
4106841068-1350 AXLE, REARAXLE, REAR
-
4107341073-1521-GE WHEEL, ASSY, REAR (G.GRAY)WHEEL, ASSY, REAR (G.GRAY)
-
42033A42033-1214 COUPLING, ASSY, REAR HUBCOUPLING, ASSY, REAR HUB
-
4203642036-1251 SLEEVE, REAR HUB, L=23SLEEVE, REAR HUB, L=23
-
4204142041-1362 SPROCKET, HUB (48 TEETH)SPROCKET, HUB (48 TEETH)
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
92004A92004-1275 STUD, 10X19STUD, 10X19
-
9202792027-1902 COLLAR, REAR AXLE, L=21.5COLLAR, REAR AXLE, L=21.5
-
9203392033-1042 RING, SNAP, 47MMRING, SNAP, 47MM
-
92033A92033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9204992049-1056 SEAL, OIL, BJN28475SEAL, OIL, BJN28475
-
9205292052-006 SEAL, OIL, TWC35527SEAL, OIL, TWC35527
-
9205792057-1386 CHAIN, DRIVE, EK50MV, XX112LCHAIN, DRIVE, EK50MV, XX112L
-
9214392143-1302 COLLAR, REAR AXLE, L=16COLLAR, REAR AXLE, L=16
-
92143A92143-1303 COLLAR, REAR HUB, L=133COLLAR, REAR HUB, L=133
-
9216092160-1399 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-1489 WASHER, 19X32X2.6WASHER, 19X32X2.6
-
9221092210-1258 NUT, 10MMNUT, 10MM
