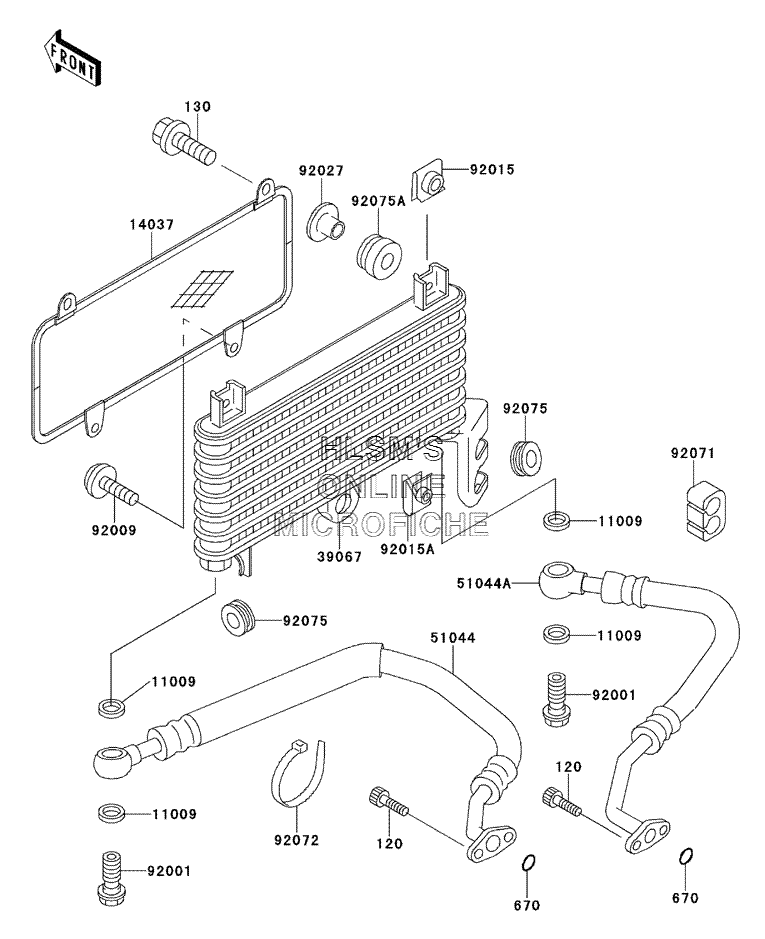

OIL COOLER для Kawasaki NINJA ZX-6 - 2001 года выпуска
-
№АртикулНазвание
-
120120S0616 BOLT, SOCKET, 6X16 (BLACK)BOLT, SOCKET, 6X16 (BLACK)
-
130130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
670670B2010 O-RING, 10MMO-RING, 10MM
-
1100911009-1461 GASKET, 14X19.5X1.4GASKET, 14X19.5X1.4
-
1403714037-1174 SCREEN, OIL COOLERSCREEN, OIL COOLER
-
3906739067-1061 COOLER, OILCOOLER, OIL
-
5104451044-1157 TUBE, ASSY (LEFT)TUBE, ASSY (LEFT)
-
51044A51044-1158 TUBE, ASSY (RIGHT)TUBE, ASSY (RIGHT)
-
9200192001-1930 BOLT, 14X28.5BOLT, 14X28.5
-
9200992009-1261 SCREW, TAPPING, 6MMSCREW, TAPPING, 6MM
-
9201592015-1487 NUTNUT
-
92015A92015-1758 NUT, 6MMNUT, 6MM
-
9202792027-1651 COLLAR, FLANGED, L=12.1 (BLACK)COLLAR, FLANGED, L=12.1 (BLACK)
-
9207192071-1216 GROMMETGROMMET
-
9207292072-1195 BAND, L=202BAND, L=202
-
9207592075-1942 DAMPER, OIL COOLERDAMPER, OIL COOLER
-
92075A92075-277 DAMPERDAMPER
