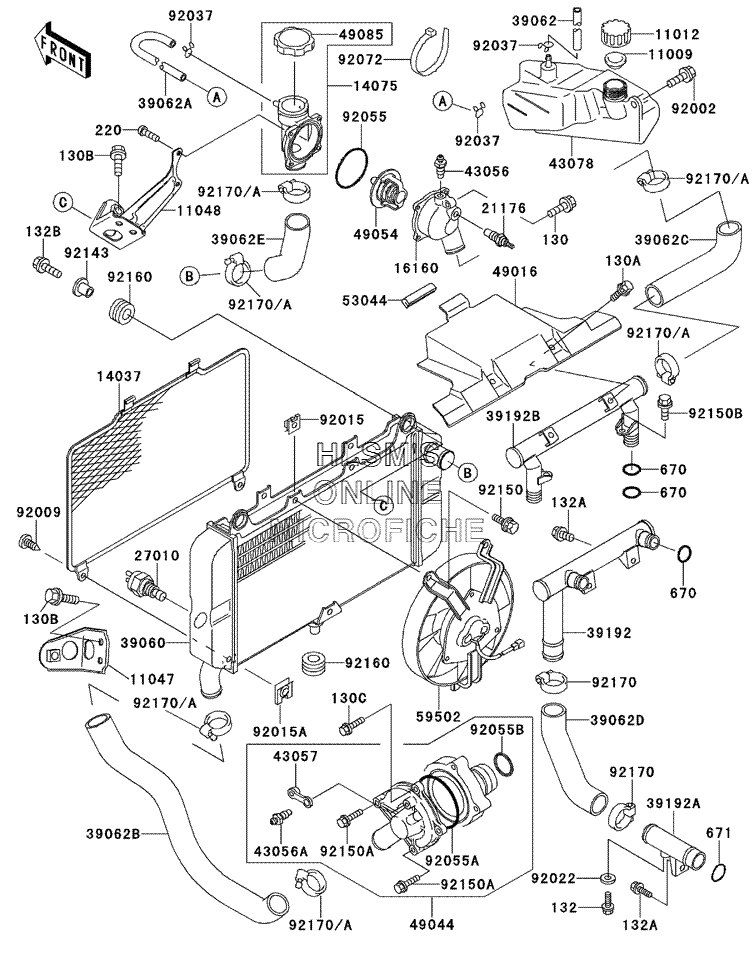

RADIATOR для Kawasaki NINJA ZX-6 - 2001 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1104711047-1925 BRACKET, RADIATOR, UPPER (LEFT)BRACKET, RADIATOR, UPPER (LEFT)
-
1104811048-1269 BRACKET, THERMOSTAT BODYBRACKET, THERMOSTAT BODY
-
1403714037-1171 SCREEN, RADIATORSCREEN, RADIATOR
-
1407514075-1068 CAP, ASSYCAP, ASSY
-
1616016160-1117 BODY, THERMOSTAT, LOWERBODY, THERMOSTAT, LOWER
-
2117621176-1054 SENSOR, WATERSENSOR, WATER
-
2701027010-1202 SWITCH, FANSWITCH, FAN
-
3906039060-1115 RADIATORRADIATOR
-
3906239062-1075 HOSE, COOLINGHOSE, COOLING
-
39062A39062-1285 HOSE, COOLING, RESERVOIRHOSE, COOLING, RESERVOIR
-
39062B39062-1526 HOSE, COOLING, RADIATOR, PUMPHOSE, COOLING, RADIATOR, PUMP
-
39062C39062-1528 HOSE, COOLING, HEAD, THERMOSTATHOSE, COOLING, HEAD, THERMOSTAT
-
39062D39062-1546 HOSE, COOLING, PUMP, CYLINDERHOSE, COOLING, PUMP, CYLINDER
-
39062E39062-1547 HOSE, COOLING, THERMO, RADIATORHOSE, COOLING, THERMO, RADIATOR
-
3919239192-1033 PIPE, WATERPIPE, WATER
-
39192A39192-1034 PIPE, WATERPIPE, WATER
-
39192B39192-1039 PIPE, WATERPIPE, WATER
-
4305643056-003 BREATHERBREATHER
-
43056A43056-1051 BREATHER, BRAKEBREATHER, BRAKE
-
4305743057-1001 CAP, BREATHERCAP, BREATHER
-
4307843078-1135 RESERVOIRRESERVOIR
-
4901649016-1161 COVER, SEAL, HEATCOVER, SEAL, HEAT
-
4904449044-1067 PUMP, WATERPUMP, WATER
-
4905449054-1051 THERMOSTATTHERMOSTAT
-
4908549085-1067 CAP, ASSY, PRESSURECAP, ASSY, PRESSURE
-
5304453044-1174 TRIMTRIM
-
5950259502-1094 FAN, ASSYFAN, ASSY
-
9200292002-1720 BOLT, 6X16BOLT, 6X16
-
9200992009-1436 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1487 NUTNUT
-
92015A92015-1758 NUT, 6MMNUT, 6MM
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-112 O-RING, 53.5X2.6O-RING, 53.5X2.6
-
92055A92055-1423 O-RING, WATER PUMP INSIDEO-RING, WATER PUMP INSIDE
-
92055B92055-1424 O-RING, 33.2X2.4O-RING, 33.2X2.4
-
9207292072-1195 BAND, L=202BAND, L=202
-
9214392143-1450 COLLARCOLLAR
-
130130G0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
130A130H0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
130B130J0618 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
130C130Y0640 BOLT, FLANGEDBOLT, FLANGED
-
132132J0610 BOLT, FLANGED, SMALL, 6X10BOLT, FLANGED, SMALL, 6X10
-
132A132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0830 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220D0514 SCREW, PAN, CROS, 5X14SCREW, PAN, CROS, 5X14
-
670670B2016 O-RING, 16MMO-RING, 16MM
-
671671B2525 O-RING, 25MMO-RING, 25MM
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
92150A92150-1379 BOLT, 6X22BOLT, 6X22
-
92150B92150-1841 BOLT, 6X12BOLT, 6X12
-
9216092160-1007 DAMPERDAMPER
-
9217092170-1284 CLAMP, COOLING HOSE (CANADA ONLY)CLAMP, COOLING HOSE (CANADA ONLY)
-
9217092170-1284 CLAMP, COOLING HOSE (US ONLY)CLAMP, COOLING HOSE (US ONLY)
-
92170A92170-1678 CLAMP (US ONLY)CLAMP (US ONLY)
