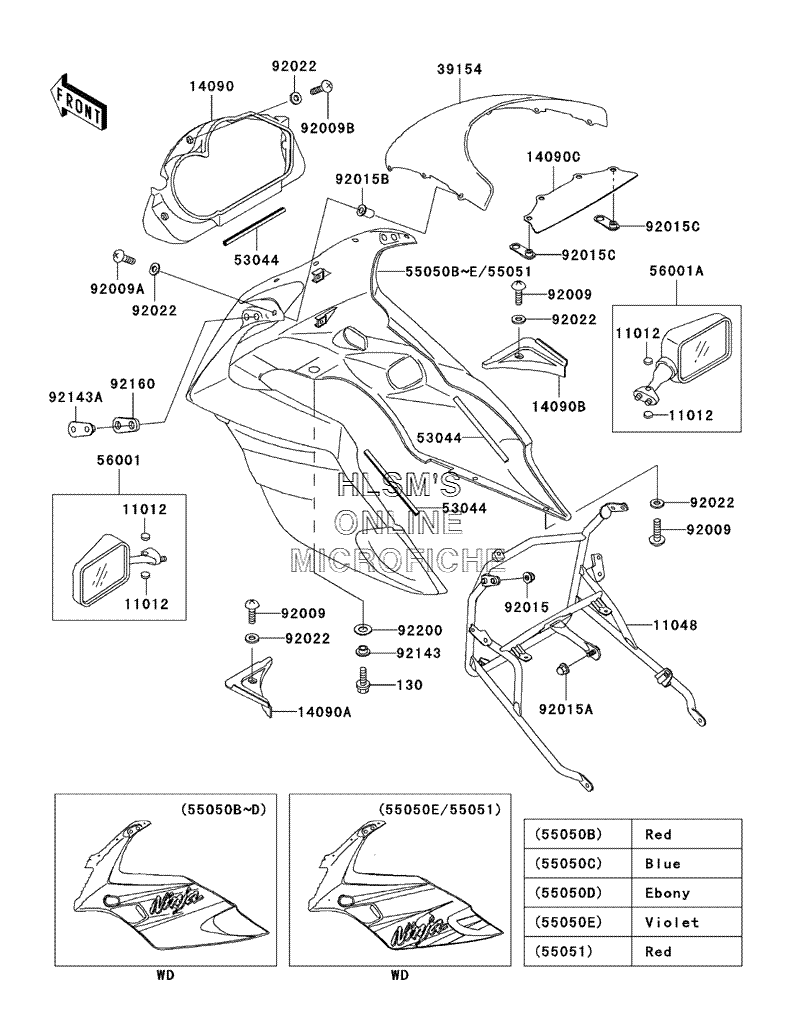

COWLING для Kawasaki NINJA 500R - 2002 года выпуска
-
№АртикулНазвание
-
1101211012-1818 CAP, MIRRORCAP, MIRROR
-
1104811048-1368 BRACKET, UPPER COWLINGBRACKET, UPPER COWLING
-
1409014090-1397 COVER, INNER COWLING, CENTERCOVER, INNER COWLING, CENTER
-
14090A14090-1398 COVER, INNER COWLING (LEFT)COVER, INNER COWLING (LEFT)
-
14090B14090-1399 COVER, INNER COWLING (RIGHT)COVER, INNER COWLING (RIGHT)
-
14090C14090-1488 COVER, WINDSHIELDCOVER, WINDSHIELD
-
3915439154-1125 WINDSHIELDWINDSHIELD
-
5304453044-1276 TRIM, L=157TRIM, L=157
-
5505155051-5104-B1 COWLING, ASSY, UPPER (F.RED)COWLING, ASSY, UPPER (F.RED)
-
5600156001-1376-6C MIRROR, ASSY (LEFT) (EBONY)MIRROR, ASSY (LEFT) (EBONY)
-
56001A56001-1377-6C MIRROR, ASSY (RIGHT) (EBONY)MIRROR, ASSY (RIGHT) (EBONY)
-
9200992009-1479 SCREW, TAPPING, 5X15SCREW, TAPPING, 5X15
-
92009A92009-1654 SCREW, 5X16 (BLACK)SCREW, 5X16 (BLACK)
-
92009B92009-1660 SCREW, 5X22SCREW, 5X22
-
9201592015-1170 NUT, CAP, 6MM (BLACK)NUT, CAP, 6MM (BLACK)
-
92015A92015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
92015C92015-1949 NUTNUT
-
9202292022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9214392143-1088 COLLAR, L=6.6COLLAR, L=6.6
-
92143A92143-1699 COLLARCOLLAR
-
9216092160-1089 DAMPER, MIRRORDAMPER, MIRROR
-
130130J0620 BOLT, FLANGEDBOLT, FLANGED
-
9220092200-1013 WASHER, 10.3X20X1WASHER, 10.3X20X1
