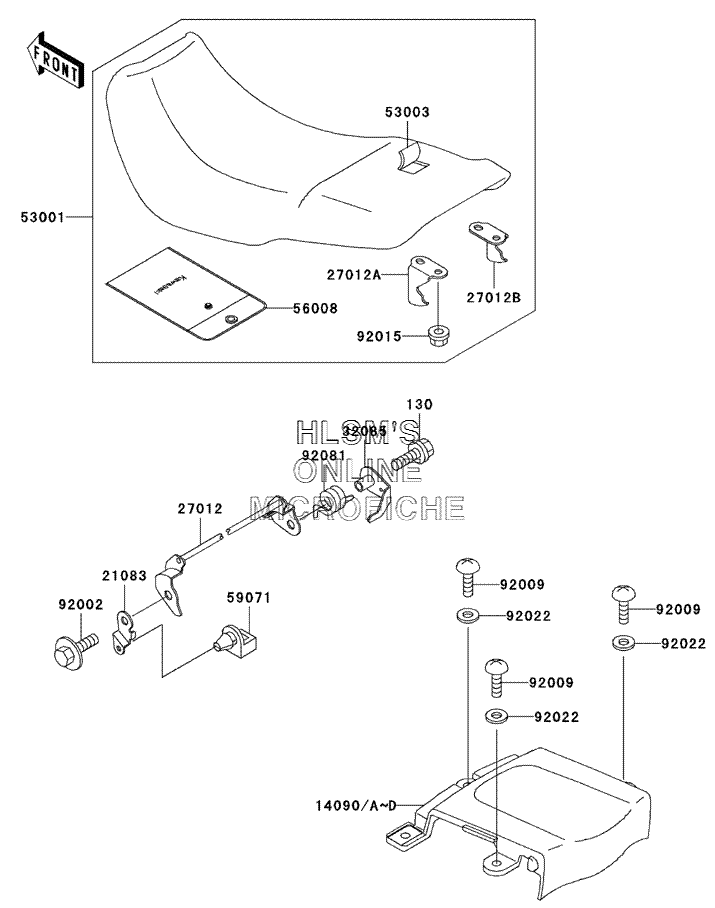

SEAT для Kawasaki NINJA 500R - 2002 года выпуска
-
№АртикулНазвание
-
130130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
14090D14090-1369-T2 COVER, SEAT (P.C.GRAY)COVER, SEAT (P.C.GRAY)
-
2108321083-1063 ARM, SEAT LOCKARM, SEAT LOCK
-
2701227012-1363 HOOK, SEAT LOCKHOOK, SEAT LOCK
-
27012A27012-1377 HOOK, SEAT (LEFT)HOOK, SEAT (LEFT)
-
27012B27012-1378 HOOK, SEAT (RIGHT)HOOK, SEAT (RIGHT)
-
3208532085-1270 STOPPER, SEAT LOCK SPRINGSTOPPER, SEAT LOCK SPRING
-
5300153001-1726-MA SEAT, ASSY, DUAL (BLACK)SEAT, ASSY, DUAL (BLACK)
-
5300353003-1284-MA LEATHER, SEAT (BLACK)LEATHER, SEAT (BLACK)
-
5600856008-1066 BAG, HAND BOOKBAG, HAND BOOK
-
5907159071-1103 JOINTJOINT
-
9200292002-1884 BOLT, 6X12BOLT, 6X12
-
9200992009-1654 SCREW, 5X16 (BLACK)SCREW, 5X16 (BLACK)
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9208192081-1982 SPRINGSPRING
