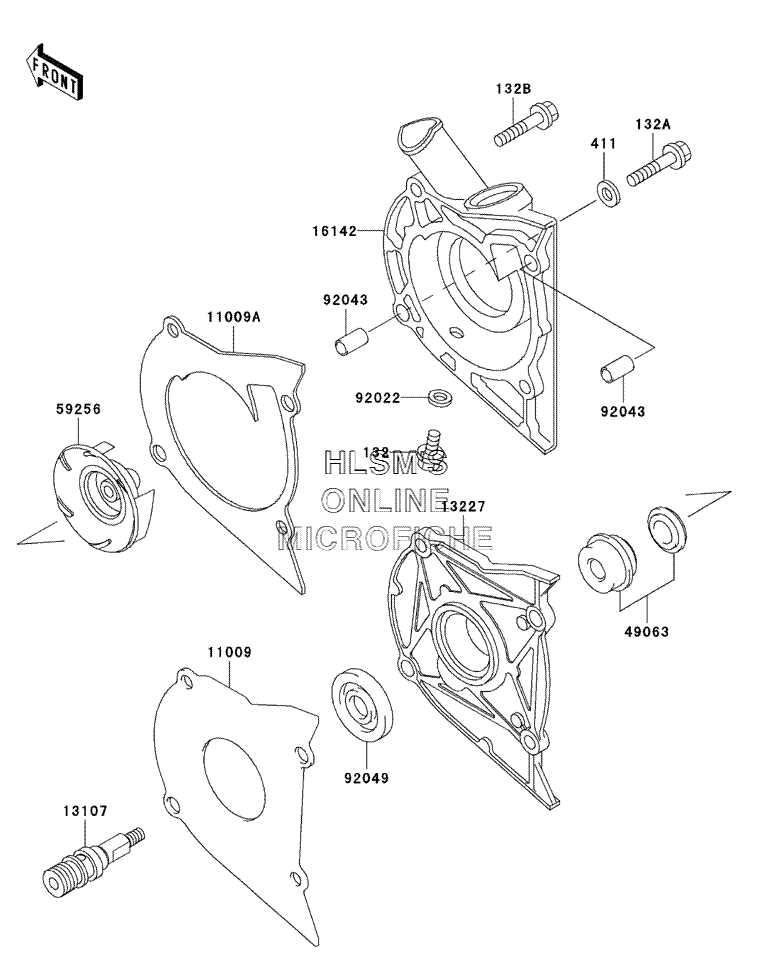

WATER PUMP для Kawasaki NINJA 500R - 2002 года выпуска
-
№АртикулНазвание
-
132132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
411411F0600 WASHER, PLAIN, 6MM (BLACK)WASHER, PLAIN, 6MM (BLACK)
-
1100911009-1838 GASKET, PUMP HOUSINGGASKET, PUMP HOUSING
-
11009A11009-1839 GASKET, PUMP COVERGASKET, PUMP COVER
-
1310713107-1203 SHAFT, IMPELLERSHAFT, IMPELLER
-
1322713227-1064 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
1614216142-1073 COVER, PUMPCOVER, PUMP
-
4906349063-1054 SEAL, MECHANICALSEAL, MECHANICAL
-
5925659256-1060 IMPELLERIMPELLER
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204992049-1215 SEAL, OIL, SC12365SEAL, OIL, SC12365
